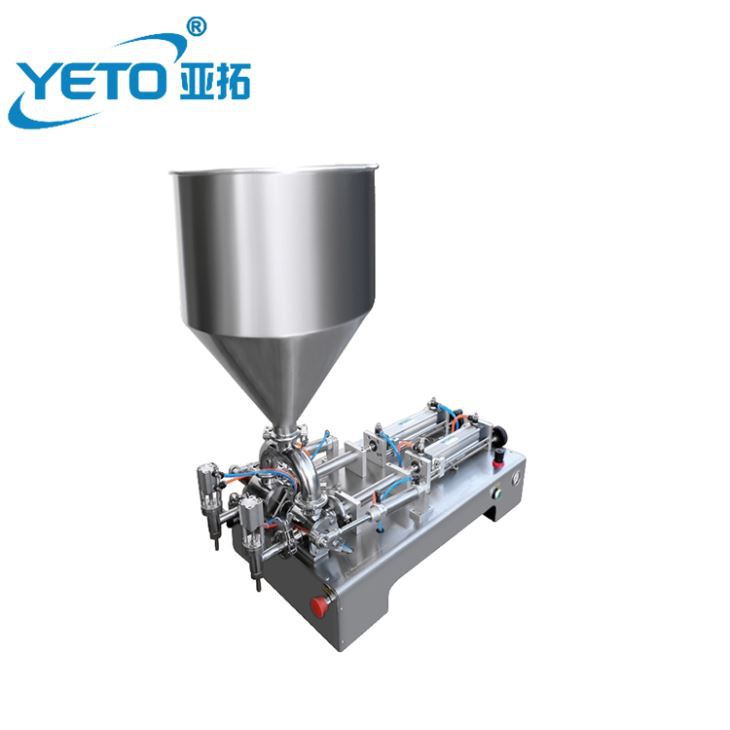

Double Heads Cream Filling Machine

Double Heads Cream Filling Machine

double heads cream filling machine The horizontal self-suction liquid filling machine is suitable for filling products of various viscosity such as water injection and ointment etc. It is applied in such industries as daily chemical industry, pharmacy, food and pesticide etc. The semi-automatic...

Send InquiryChat Now

double heads cream filling machine

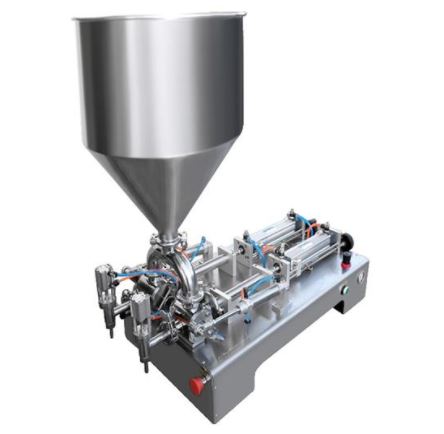

The semi-automatic piston type filling machine(full-pneumatic) is a new generation product developed on the basis of the original electric combined machines. It adopts pneumatic components to replace the electric control circuit. Therefore, it is especially suitable for use in damp conditions or conditions with explosion-proof requirements. The parts of our LM series products that contact materials are all made of imported 316L stainless steel and are machined through CNC machine tools with the surface roughness lower than 0.8.



Parameter:

Filling nozzle2Filling range6-60,12-120,30-300 etc
Filling accuracy±1%Filling speed30-50b/min
Air pressure4-8kg/cm2Hopper volume

30L

MaterialSUS304Weight50kg


Advantage

  1. high filling accuracy

  2. easy cleaning(all the parts can be seperated)

  3. easy operating(controlled by foot paddle)


Application:

The horizontal self-suction liquid filling machine is suitable for filling products of various viscosity such as water injection and ointment etc. It is applied in such industries as daily chemical industry, pharmacy, food and pesticide etc.
