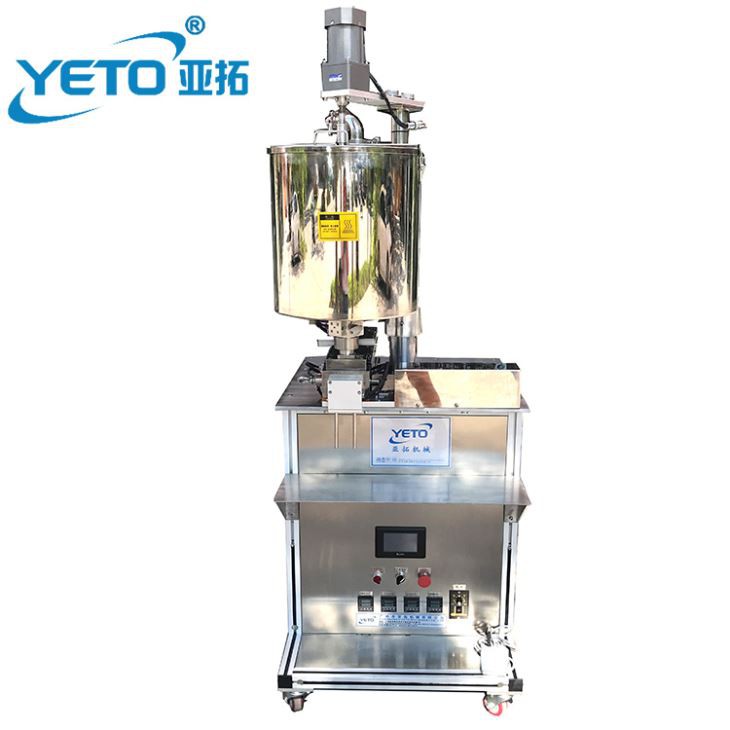

Double Heads Servo Motor Filling Machine

double heads servo motor filling machine This machine is professional used in pharmaceutical field ,it is for filling unguent into jars and aluminum pans.It is controlled by servo motor,more stable and more high accuracy of filling. As some factory that can not work with air compressor, then...

Send InquiryChat Now

double heads servo motor filling machine

This machine is professional used in pharmaceutical field ,it is for filling unguent into jars and aluminum pans.It is controlled by servo motor,more stable and more high accuracy of filling.



As some factory that can not work with air compressor, then this machine is very helpful,as it is controlled by electric only.Electric control makes the machine more reposeful,little sound and comfortable for working long time.



PLC touch screen control ,almost all the operation can be finished with the touch screen,no matter setting filling time or setting interval,or speed setting.


Material of hopper

AISI 316

Volume of hopper

30L

Material of machine

AISI304

Motor power

4.0kw

Control

Servo motor

Height of table

950mm

Filling volume

10-120ml

weight

180kg

Filling nozzle

2

Size of nozzle

6 8 10 mm(can be selected)

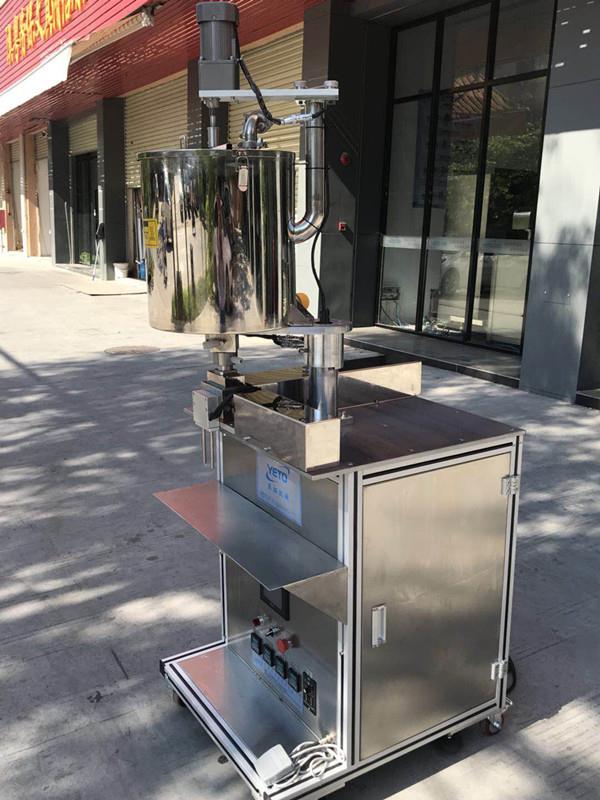

filling machine_副本

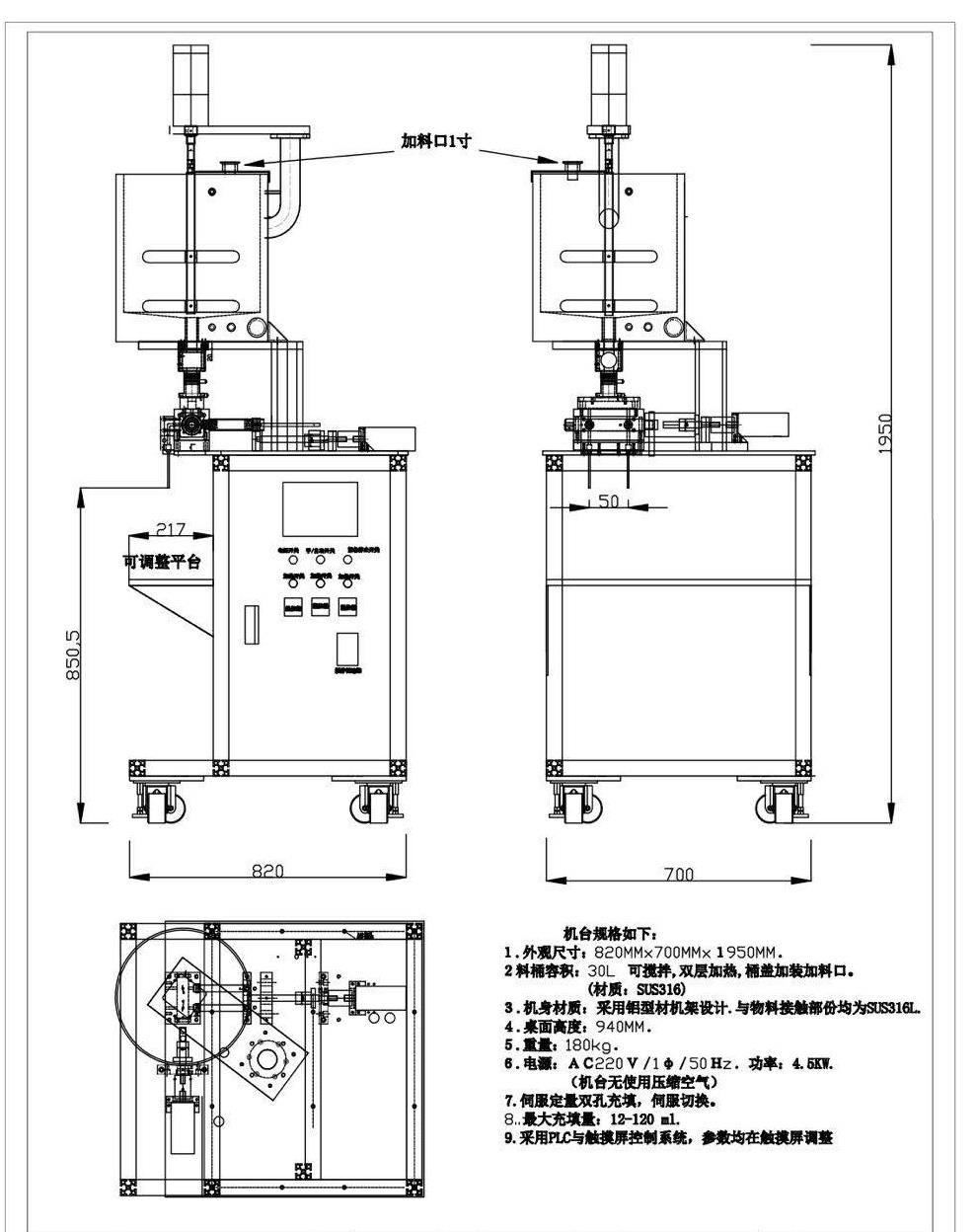

Machine drawing
