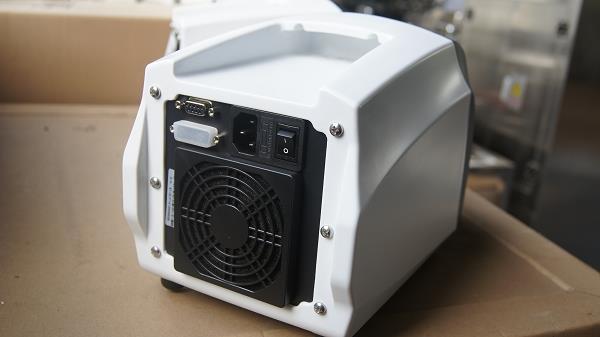

Lab or Small Business Use Liquid Peristaltic Pump Filling Machine


Color LCD displaying, touch screen and keypad for operating.
• Three types of distributing mode: time dispensing mode; volume dispensing mode; copy dispensing mode.
• Automatically store five groups of working parameters.
• Precious controlling technology for motor's rotating angle increases the dispensing accuracy comparing to traditional time dispensing mode.
• Remote infrared controlling function.
• Reversible direction, start/stop and full speed, state memory (power-down memory).
• Speed resolution is 0.1rpm.
• Display and control flow rate, accumulate dispensing volume automatically.
• Calibrating flow function.
• The operating expert system guides users setting parameters correctly.
• Intelligent temperature-control technology reduces working noise.
• External high-low electrical level controls the start/stop、reversible direction and easy dispensing function, optically coupled isolator; external analog adjusts the rotate speed.
• RS485 interface, MODBUS protocol is available, easy to connect other equipments.
• Internal double-deck isolation structure; circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.
• ABS plastic housing, creative streamlined appearance.
• Can drive multi-channels and various types of pump heads.
• Optional footswitch or timer for dispensing fluid.



Technical parameters
• Flow range(mL/min): 0.00011-575
• Speed range(rpm): 0.1-150
• Speed resolution(rpm): 0.1
• Flow accuracy: <0.5%
• Power supply: AC220V ± 10% 50Hz/60Hz(standard );
   AC110± 10% 50 Hz/60Hz(optional)
• Power consumption: <30W
• External control: Input level 5V,12V(standard), 24V(optional)
   External control analog 0-5v(standard), 0-10v, 4-20mA(optional)
• Communication interface: RS485 communication interface, MODBUS protocol is available.
• Operating condition: Temperature 0 ~ 40°C; Relative humidity <80%
• IP grade: IP31
• Dimensions(LxWxH): 223x150x195(mm)
• Weight: 4.5kg


Yeto Machine is a professional manufacturer and supplier of various machine. Please rest assured to buy the high-end lab or small business use liquid peristaltic pump filling machine with competitive price from us. We will offer you good after-sale service and fast delivery.
