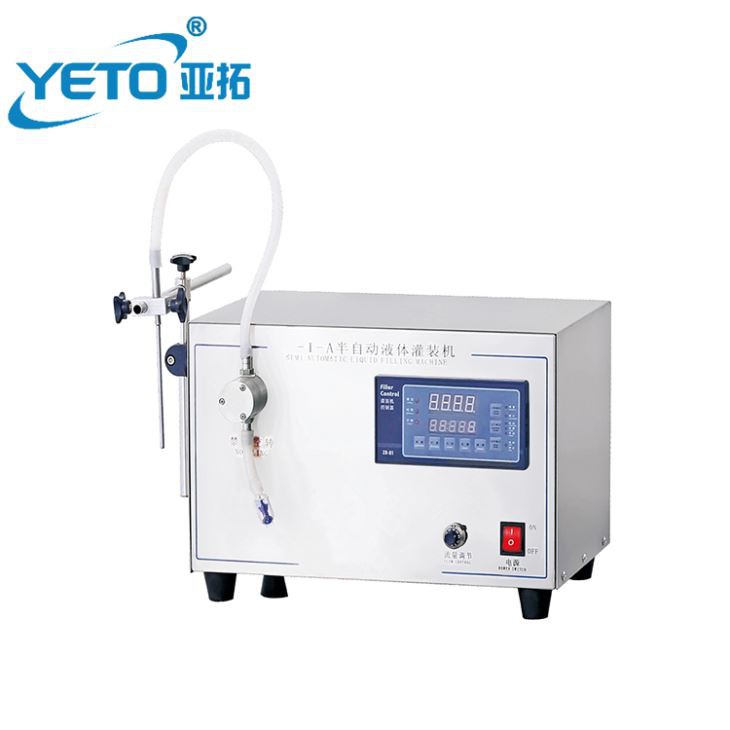

PLC Control Big and Small E Liquid Pump Filling Machine

The microcomputer-controlled semi-automatic filling machine is equipped with imported microcomputer-controlled chips which can control the filling time...

Send InquiryChat Now


PLC Control Big and Small E Liquid Pump Filling Machine


The microcomputer-controlled semi-automatic filling machine is equipped with imported microcomputer-controlled chips which can control the filling time and filling flow precisely. Besides, it uses internationally famous frequency conversion speed controller and imported magnetic gear stainless pump (316L) as key components; therefore it is of high quality and wearable. It is widely used in the industries such as pharmacy, food, cosmetic, daily chemical, domestic chemical, agricultural chemical and so on. It is able to fill almost all kinds of liquid such as: various medicaments, chemicals, beverage, cosmetic, food and other kinds of granule-free liquid.



Functional Features
1. Equipped with microcomputer-controlled chips, it features in precise control and easy operation.
2. Digital display, precise and free from parallax.
3. Touch panels, comfortable hand touch and good sensitivity.
4. Data saving function in the chips.
5. Large filling range. For small pump machine, it is adjustable from 1ml to10, 000ml; for large pump machine, from 10ml to 80,000 ml
6. The whole shell is made of stainless steel.


Technical Parameters


Model

Rated Voltage

Power

Max. Flow

Tolerance

Machine Size(mm)

Net Weight

Packing Size(mm)

 I-A

220V 50/60Hz

38W

Single pump >1.4L/M

±1%

400*300*250

11Kg

480*380*335

II-A

220V 50/60Hz

(38*2)W

Double pump >1.4L/M*2

±1%

500*300*250

16kg

580*380*335

   IIII-A

220V 50/60Hz

(38*4)W

Four pump >1.4L/M*4

±1%

615*300*250

26kg

645*420*350

I-B

220V 50/60Hz

400W

Single pump >10L/M

±1%

400*360*270

18kg

480*380*335

II-B

220V 50/60Hz

(400*2)W

Double pump >10L/M*2

±1%

580*360*270

28kg

645*420*350


Yeto Machine is a professional manufacturer and supplier of various machine. Please rest assured to buy the high-end plc controll big and small e liquid pump filling machine with competitive price from us. We will offer you good after-sale service and fast delivery.
