Semi and Automatic Air Freshener Aerosol Can Spray Filling Machine

Bottle will be conveyed to plate, then the bottle will move to filling head, the filling head has been installed detector, which can fulfill automatic counting.

Send Inquiry

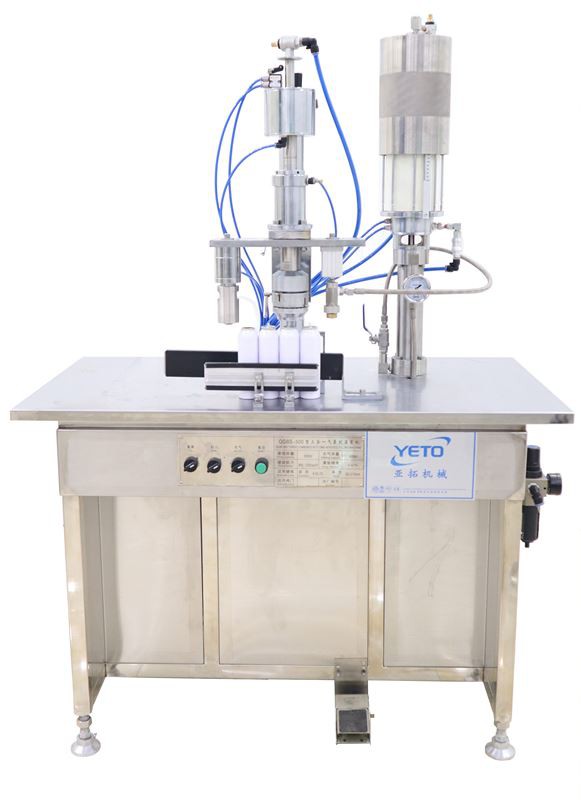

Semi and Automatic Air Freshener Aerosol Can Spray Filling Machine


Bottle will be conveyed to plate, then the bottle will move to filling head, the filling head has been installed detector, which can fulfill automatic counting.
There are two filling nozzles to meet high capacity. It Adopts piston pump tee joint structure. Using cylinder to fix quantity, and filling under the pressure, exact filling, and high speed, using SUS304L volumetric injection pump; it is economic utility, low plant cover, the machine is widely applied to liquid packing in the market of pharmaceutical, pesticide, chemical, foodstuff, cosmetic etc, meet to the requirement of GMP.


Sealing:
When there are bottles passed, the valves will be put into the bottle manually. Under the the platform, the bottle with valve will move to the sealing head. It adopts outer grasping type or pressing into cans type sealing. The sealing head is specially designed according to valve. When sealing the bottle, first step press valve to positionalize it, then sealing claw will seal the bottle. The airproof circle inside the valve will tightly linked to the bottle, so it is beautiful without leakage.


Charging:
Already sealed bottles need to charge air into them. Air will be charged through valve under high pressure. We adopt 3 main parts to charge air to meet the output. There are specialized detectors under charging heads. Normally the charging head is closed to guarantee no leakage. When there are bottles under the charging heads, the valves will open the charging heads and begin to charge air, so when there are no bottles under the charging heads, the charging heads will not charge air into the bottle. It can avoid the demerit of air charging without bottles under the charging heads.

The working principle of charging machine is as follows. Pressure increase pump transform the mixture of liquid and gas into liquid form, then go to complementary pump for storage. When charging work starts, the liquid will absorbed from complementary pump to quantity fix jar, then piston of the quantity fix jar fixes quantity to make sure the precision of the charging task. Quantity fix jar adopts 316L stainless steel, which is anti-corruption with long duration and precise quantity fixing.
You should change platform and gas quantity adjustment when produce different specs. There are scales on quantity fix jar and filling part. You can change the quantity by screw the hand wheel to a proper position.
The machine is controlled by gas, which is safe and explosion-proof.
Main characteristics of its function
Save manpower, cover small area.
The equipment has low investing cost. but has high output.
Fill, sealing and charging are a trinity.


Main technical parameters:
Dimension:1280*730*1880mm
Applicable valve: 1 Inch(can be customized)
Diameter of the inhalator jar: φ 35- φ 70mm(can be customized)
Height of the inhalator jar:80-315mm
Filling precision: ≤± 1%
Filling amount:300ml-500ml
Filling precision of rejecting preparation: ≤± 1%
Producing ability:300-1200 cans/hour(depends on the volume per can)


Yeto Machine is a professional manufacturer and supplier of various machine. Please rest assured to buy the high-end semi and automatic air freshener aerosol can spary filling machine with competitive price from us. We will offer you good after-sale service and fast delivery.
