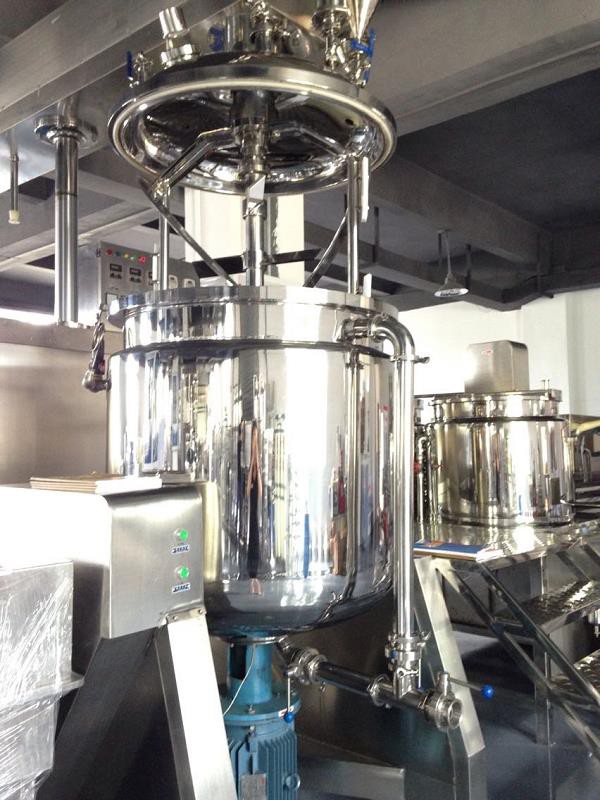

500L Lifted Pharmaceutical High Shear Inline Homogenizer Dispenser Emulsifier Machine

Working Process: The materials are heated and mixed in water pot and oil pot to be fully reacted. Sucked into emulsifying pot by vacuum pump, the materials are stirred by both...

Send Inquiry


500L Lifted Pharmaceutical High Shear Inline Homogenizer Dispenser Emulsifier Machine


Working Process:
The materials are heated and mixed in water pot and oil pot to be fully reacted. Sucked into emulsifying pot by vacuum pump, the materials are stirred by both the center blade and side scraper, which works on the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, folded. Then,the materials are sent to the cut-off mixing until where they are finally crushed into small pellets of 200μm~2μm. Besides,because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from materiallotion making machine.
(vacuum ointment emulsifying machine, vacuum homogenizing emulsification machine, vacuum emulsify, vacuum emulsifier, emulsifier, vacuum emulsifying mixer)




Usage:
It is suitable for production of ointment and cream products in cosmetic and pharmaceutical plants.
The emulsifying effect is more prominent for materials of high base viscosity and high solid content.


lotion emulsifying machine (4).jpg


Advantage:
1. Homogenizer's design mainly stem from Japanese technology.
2. Completely Meet GMP
3. Material contact part all use SUS316L
4. Using Japan NSK bearings
5. Siemens Inverter, power-saving, machine-protect, keeping the machine working stably
6. Burgmamn mechanical seal, seal good, long working life, keep the homogenizer work 24 hours continually.
7. Slow stirring axle adopts 2 sets of mechanical seal and 2 sets frame oil seal, make the seal saver.
8. Stirring scrap and middle stirring rotating the opposite direction make the mixing more equally
9. Safety protecting functions, make the produce saver
10. Install a fall buffer unit on the hydro-cylinder in the hydraulic system; keep the cover up and down stable.


lotion emulsifying machine (5).jpg


Yeto Machine is a professional manufacturer and supplier of various machine. Please rest assured to buy the high-end 500l lifted pharmaceutical high shear inline homogenizer dispenser emulsifier machine with competitive price from us. We will offer you good after-sale service and fast delivery.
