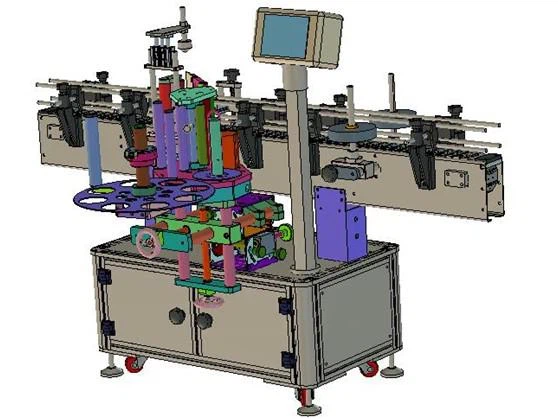

Automatic Round Glass Bottle Labeling Applicator Machine with Circle Roller


A:Principal machine section
YASKAWA 750W ultra-small inertia servo motor, YASKAWA servo amplifier, Danfoss Drives of Danmark, Panasonic motor, Panasonic Programmable Logic Controller (PLC), HMI Taiwan (in Chinese and English interface),German SICK label sensor
B:Mechanical part
Transportation institution: 200W Taiwan AC motor, frequency converter adjust the speed

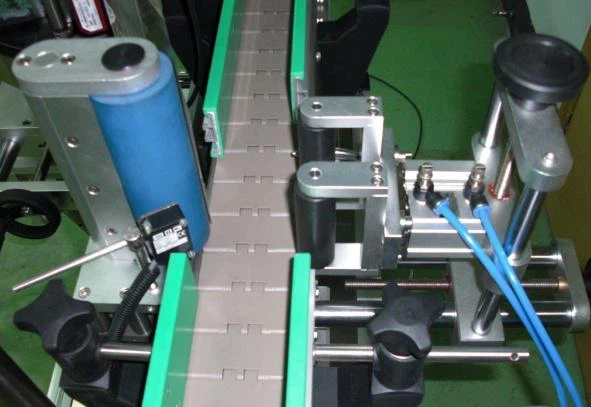

Guide bottle institution:double coordinates adjusted scratch check rails.
Sub-bottle institution: Panasonic Motor, SCR speed control.
Round bottle institution: particularly suitable for the whole high demanding paste; three-roller automatic orientation can greatly reduce the cone due to product labeling and other unknown factors that caused the error. (Which can be achieved with one label of round bottle any post, installing electric eye can achieve positioning stickers, one label can post all faces, two labels symmetric and positioning post etc.).


2.Performance Features:
Labeling machine head 8-dimensional space adjustment, the angle can be adjusted freely, easy to paste a variety of difficult and transparent label; high elastic sponge scraper and non-powered round extrusion, to ensure that no air bubbles; mechanical structure of machine uses an enhanced rigid design, Simple, generous and stable.


3.Technical parameters:
Model: DY811
Production speed: 4000PCS/hour
Labeling accuracy: ±1mm
Label max width: 190mm
Bottle diameter: 25-Φ120mm
Label inner diameter: 76.2mm
Label outer diameter: 330mm
Be posted in diameter: 30-110mm (Smooth conveying runtime needs to stand)
Air Source: 4-6kg
Weight: 160KG
Power: 220V 50Hz 1500W
Outline size(L*W*H): 2000*800*1400(mm)


Yeto Machine is a professional manufacturer and supplier of various machine. Please rest assured to buy the high-end automatic round glass bottle labeling applicator machine with circle roller with competitive price from us. We will offer you good after-sale service and fast delivery.
