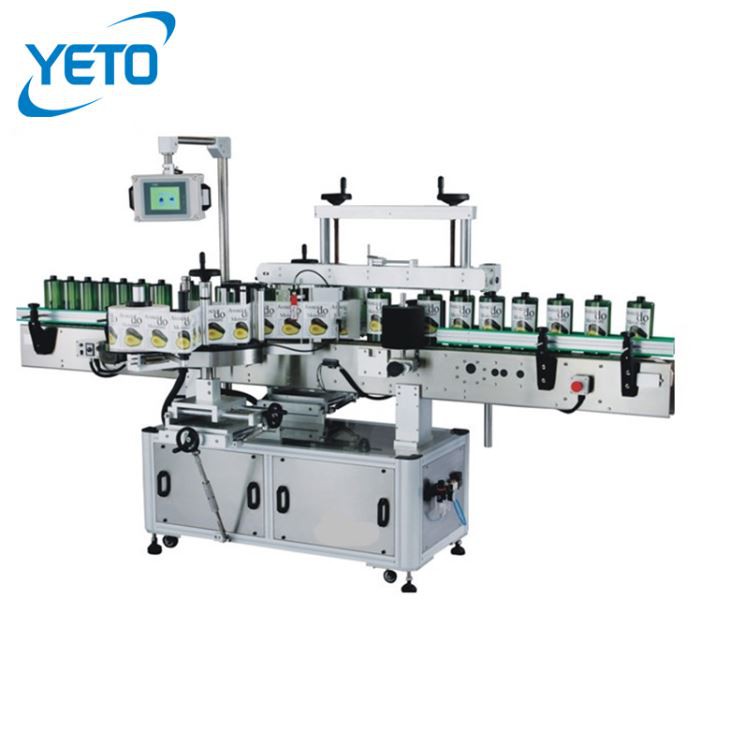

High performance Automatic labeling machine,round / flat / square bottle double sides labeling
YL820S Performance charateristic
A:Host using two cutting-edge technology of the company
1) Double press roll delivery the label, which will help improve the labeling accuracy .
Before labeling ,the label pass roll press of initiative pressing roll, which will help to eliminate wrinkles tags to improve the quality of labeling, to exhaustion of the last one label.
2) Secondary rocker spring delivery label clutch with additional belt brakes achieve high-speed constant tension delivery
B:Interpretation of the machine performance
1)As the machine uses a combination of cutting-edge technologies, and high-performance components - ultra small inertia servo motor, the system by Siemens programmable logic controller professional closed-loop control of servo motors, the use of advanced HMI system implement worker and machine's conversation, During the host was rushed to the label speed control process, it can reach 0.01 m / min accuracy class, rather than the general machinery of 1 m / min, a single machine in this regard to improve both the accuracy class; and at this side,the machine improved two accuracy classes .On speed side ,the machine use ultra-small inertia, high-power 750W YASKAWA servo motor , the speed between 0.5-40 m / minute can be adjusted any number under the large-scale to meet your production line speed, so as to achieve real High-speed labeling.
C:YL820S performance comparison with others
1)The labeling machine use ultra-small inertia servo motor, but most of the labeling machine still use the stepper motor
2)The machine with PLC control, rather than general SCM
3) The HMI of the machine is a real sense of the digital control, rather than simply display
D:Transport sector: imported AC motor, Frequency converter speed regulation
Ultra-high-power AC motor, with a large capacity inverter, the speed of sending bottles more stable, which will help improve the labeling accuracy;
In the labeling process of the machine, position of the optical switch for measured object can be adjustable to achieve zero-latency, so the machine can achieve zero pitch labeling, and improve greatly the production speed, in the past, most of labeling machine ,measured Optoelectronic switch was Fixed, using delayed control, that is, when measured Optoelectronic switch give the signal, the system delays the label, but if in the process, the system voltage changes, or changes in the load conveyor, then the position of label Will have a significant deviations
Yeto Machine is a professional manufacturer and supplier of various machine. Please rest assured to buy the high-end high performance automatic labeling machine,round / flat / square bottle double sides labeling with competitive price from us. We will offer you good after-sale service and fast delivery.
