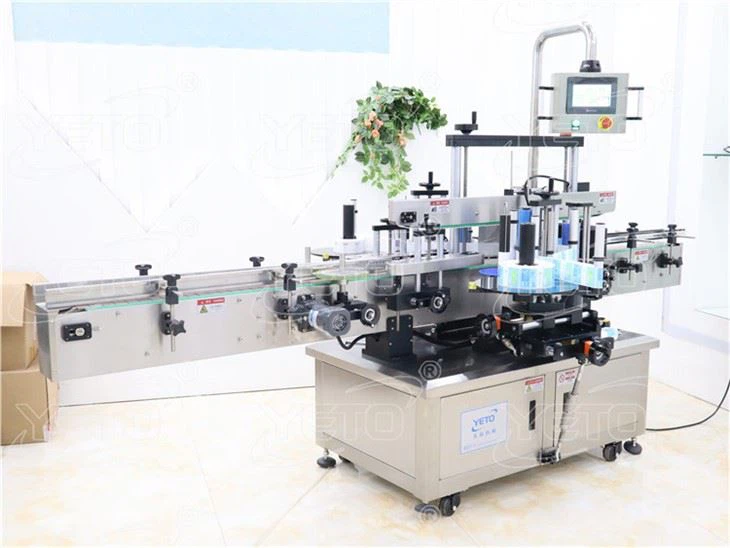

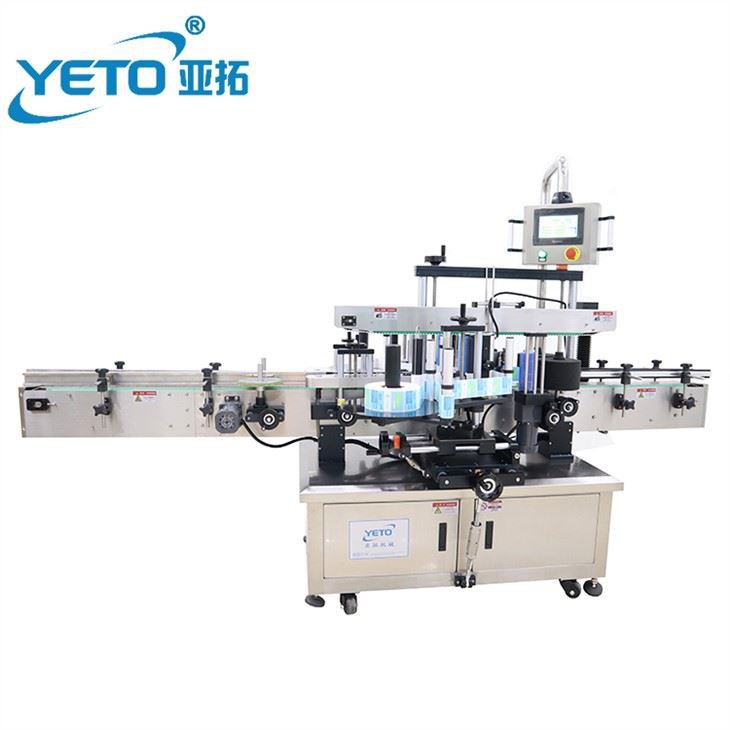

Multi Functional Irregular Jar and Bottle Lableing Machine

Multi Functional Irregular Jar and Bottle Lableing Machine

1.Construction of machine: A:Principal machine section: YASKAWA 750W ultra-small inertia servo motor, YASKAWA servo amplifier, Danfoss frequency converter...

Send Inquiry


Multi Functional Irregular Jar and Bottle Lableing Machine


1.Construction of machine:


A:Principal machine section:
YASKAWA 750W ultra-small inertia servo motor,
YASKAWA servo amplifier, Danfoss frequency converter,
Panasonic motor,Siemens Programmable Logic Controller (PLC),
WEINVIEW color HMI (in English and Chinese interface),
Germany LEUZE label sensor, Germany LEUZE product testing photoelectric switch


B:Mechanical part
Transport sector: Taiwan imported AC motor 750W, Danfoss frequency converter adjust the speed
Guide bottle institution: double coordinates adjusted scratch check rails in SS.
Bottle dividing institution: Panasonic Motor,converter control the speed.
Integer institution: Panasonic motor, frequency converter adjust the speed, synchronous with the conveyor.
Pressing institution: spiral bevel gear transmission, synchronized with the conveyor
Scratch label institution: sponge spring steel plate combination, Teflon patch.
Pressure label institution 1: Combination non-power roller, quickly removable to accommodate different sizes of labels. It can increase round bottle institution(the price need be discussed): Particularly suitable for the whole high demanding paste; three-roller automatic orientation can greatly reduce the cone due to product labeling and other unknown factors that caused the error(Which can be achieved with one label of round bottle any post, installing electric eye can achieve positioning stickers, one label can post all faces, two labels symmetric and positioning post etc.).


2.DY820Performance charateristic


A:Host using two cutting-edge technology of the company
1) Double press roll delivery the label, which will help improve the labeling accuracy Before labeling, the label pass roll press of initiative pressing roll, which will help to eliminate wrinkles tags to improve the quality of labeling, to exhaustion of the last one label.
2) Secondary rocker spring delivery label clutch with additional belt brakes achieve high-speed constant tension delivery


B:Interpretation of the machine performance
1)As the machine uses a combination of cutting-edge technologies, and high-performance components - ultra small inertia servo motor, the system by Siemens programmable logic controller professional closed-loop control of servo motors, the use of advanced HMI system implement worker and machine's conversation, During the host was rushed to the label speed control process, it can reach 0.01 m / min accuracy class, rather than the general machinery of 1 m / min, a single machine in this regard to improve both the accuracy class; and at this side,the machine improved two accuracy classes. On speed side, the machine use ultra-small inertia, high-power 750W YASKAWA servo motor, the speed between 0.5-40 m / minute can be adjusted any number under the large-scale to meet your production line speed, so as to achieve real High-speed labeling.


C:DY820performance comparison with others
1)The labeling machine use ultra-small inertia servo motor, but most of the labeling machine still use the stepper motor
2)The machine with PLC control, rather than general SCM
3) The HMI of the machine is a real sense of the digital control, rather than simply display


D:Transport sector: imported AC motor, Frequency converter speed regulation
Ultra-high-power AC motor, with a large capacity inverter, the speed of sending bottles more stable, which will help improve the labeling accuracy;
In the labeling process of the machine, position of the optical switch for measured object can be adjustable to achieve zero-latency, so the machine can achieve zero pitch labeling, and improve greatly the production speed, in the past, most of labeling machine ,measured Optoelectronic switch was Fixed, using delayed control, that is, when measured Optoelectronic switch give the signal, the system delays the label, but if in the process, the system voltage changes, or changes in the load conveyor, then the position  of label Will have a significant deviations


E:labeling institution
Labeling machine head eight orientation adjustment, the angle can be adjusted freely, easy to paste a variety of difficult and transparent label; high elastic sponge scraper and non-powered round extrusion, to ensure that no air bubbles; mechanical structure of machine uses an enhanced rigid design, Simple, generous and stable.
380V 50 Hz 3000W
Production speed: 40m/min(8000~10000BPH)
Label accuracy: ±1mm
Roll label diameter max: 330 mm
Label inner diameter: 76.2 mm
Label width max(height of label): 200mm(can be made according to the requirement)
Size of machine: L3048*W1400*H1650(mm)
Weight of machine: 400 kg


Yeto Machine is a professional manufacturer and supplier of various machine. Please rest assured to buy the high-end multi functional irregular jar and bottle lableing machine with competitive price from us. We will offer you good after-sale service and fast delivery.
