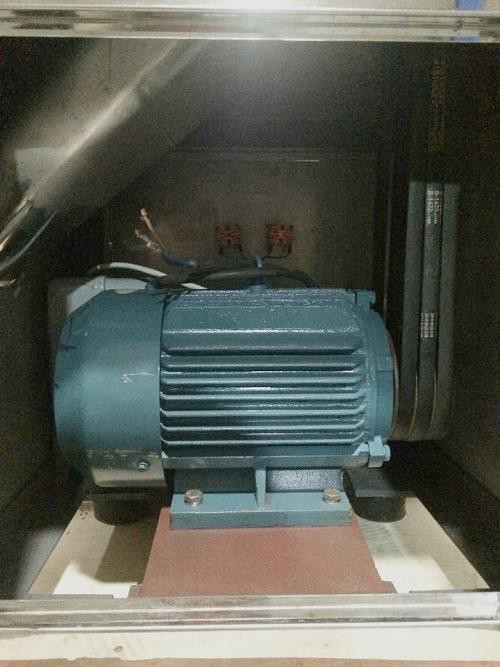

Stainless Steel Vertical Medicinal Herbs Material Omnipotent Pulverizer


The series crusher is a stainless steel type grinder, which is suitable for the industries of medicine, chemical industry, pesticide, foodstuff and foodstuff. It crushes the dry brittle material. It is not suitable for the material with low softening point and high viscosity.
As the machine and the crushed material contact parts are all made of stainless steel, has good corrosion resistance, the current type of frame around all closed, easy to clean, the shell wall by machining all the surface formation, smooth, changed the The original wall rough, plot powder phenomenon, so that drugs, food and other production more in line with "GMP" standard.


Second, the structure and working principle:
This series grinder spindle is equipped with movable gear plate, movable tooth plate with three laps of active teeth, the door has a fixed tooth plate, fixed gear tray with two rings of steel teeth fixed ring gear. Movable teeth on the movable gear are interdigitated with fixed ring gears. When the spindle high-speed operation, the activities of the tooth plate is also running, the material thrown into the hammer gap. In the material and the teeth or the mutual impact of materials, shear, friction and other comprehensive role, to obtain crushing. After the finished product through the screen, from the crushing chamber into the capture bag, coarse material will continue to crush. This series grinder simple structure, durable, high yield, smooth operation.


Model

20B

30B

40B

capacity (kg/h)

60-150

100-200

160-800

Running speed (r/min)

4500

3800

2800

Material inside speed (mm)

6

8

12

mesh

80-120

80-120

80-120

power (kw)

4

5.5

11

weight (kg)

250

320

550

size (mm)

550x600x1250

720x590x1400

800x600x1602


Yeto Machine is a professional manufacturer and supplier of various machine. Please rest assured to buy the high-end stainless steel vertical medicinal herbs material omnipotent pulverizer with competitive price from us. We will offer you good after-sale service and fast delivery.
