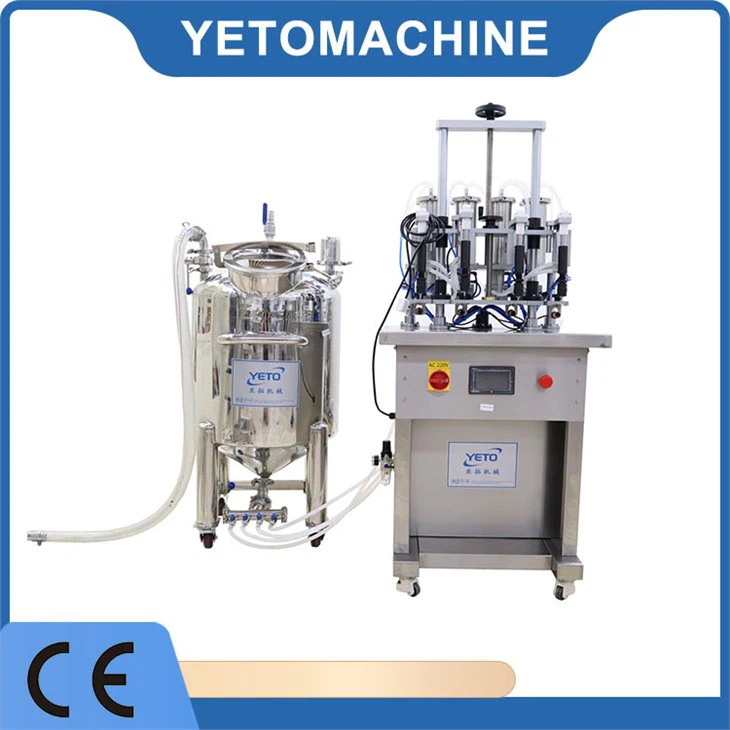

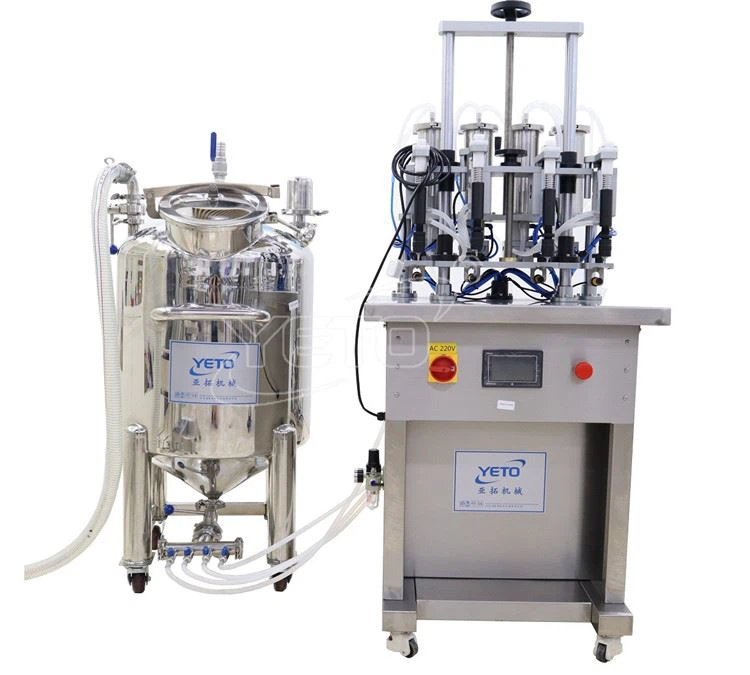

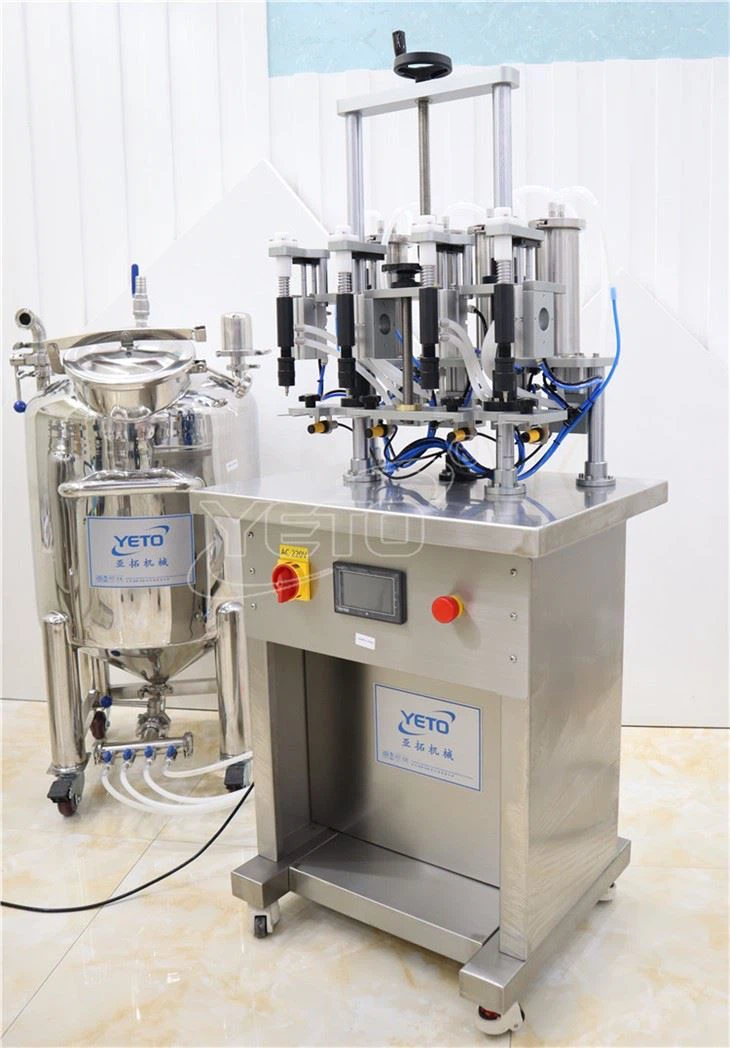

Four Heads Same Level PLC Control Sunction Perfume Filling Machine


Brief Instructions
The Self-suction Perfume Filling Machine produced by our company is based on reference of foreign similar products and then redesigned accordingly, with partial additional functions on it. It makes the product much simplifier and convenient in the aspect of operation, accuracy error, adjustment, equipment clearance and maintenance. The parts that contact the materials are all made of 304 stainless steel. It is suitable for glass bottles or plastic bottles whose body will not be easily deformed after vacuum extracting. The products are divided into two styles, one is general type, another is explosion-proof type. If you need an explosion-proof type, please tell us while placing the order. However, the electromotor, switches and connecting cable are all explosion-proof, or adopting explosion-proof measures. The other vacuum parts of the machine are all the same. The Self-suction Perfume Filling Machine is used for filling floral water, perfume and other water-based materials.
The machine adopts negative pressure and fixed liquid surface type filling. It includes two kinds of specifications such as four-head and six-head.






Main Technical Parameter
supply voltage                                                         3/N AC380V/220V
power consumption                                               0.37KW
noise                                                                         ≤70dB(A)
filling accuracy                                                         ±1%
rated filling volume                                                1000mL
apply scope                                                             5~1000mL
production capacity                                                10~40bot/min
body height of the using bottle                             ≤250mm
applicable bottle body diameter                           ≤φ90mm
maximum diameter                                               ≤φ20mm
Minimum diameter                                                 ≥4.5mm
applicable diameter for bottle mouth                 ≥5mm
adjustable liquid level height(from the mouth) 26-50
applicable temperature                                         0∽30
vacuum pump                                                          XD-020 (explosion-proof type 2X-4A)
air extraction rate                                                    5.5 (explosion-proof type 4)
motor power                                                            0.75KW
Outer dimension                                                    700X500X1300mm


Yeto Machine is a professional manufacturer and supplier of various machine. Please rest assured to buy the high-end four heads same level plc control sunction perfume filling machine with competitive price from us. We will offer you good after-sale service and fast delivery.
