Automatic Double Heads Toothpaste Tube Double Colors Filling Sealing Machine

Characteristics: YETO-100 Automatic Filling and sealing Machine is mechatronic mechanical-electrical integration, use multiple introduction technology...

Send Inquiry


Automatic Double Heads Toothpaste Tube Double Colors Filling Sealing Machine


Characteristics:
YETO-100 Automatic Filling and sealing Machine is mechatronic mechanical-electrical integration, use multiple introduction technology and controlled by PLC, it can complete tube feeding, local color code, filling, sealing and tube out automatically simultaneously. The machine runs smoothly, easy to control and size change over, suitable for producing paste products
HTGF-100 has a modern shape, a strong practicability and good value for process, it is widely used in toothpaste, ketchup, paste food, cosmetic, hair-dyeing paste, art palette and industry


tube filling sealing machine 2.jpg


Features:
1.Stainless steel volumetric dozing syringe and Teflon piston seals for accurate dosage
2.Tube lifting at filling station – so that filling nozzle gets inserted inside tube during filling
3.Tail cutting by 'suck back' method to prevent dripping of product after filling

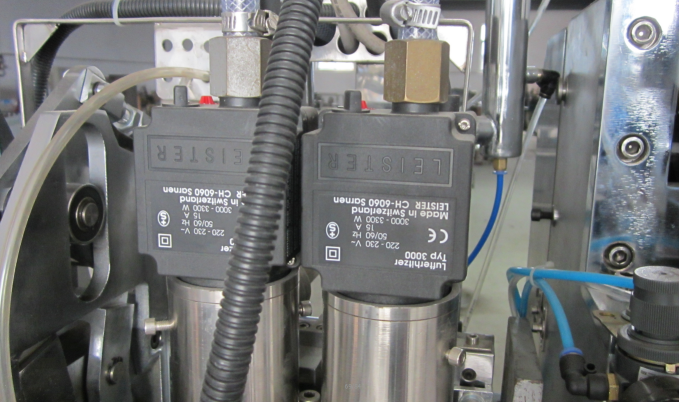

4.Hot air tool for plastic / laminated tubes (Leister make heater)
5.PID temperature controller for accurate control of hot air temperature
6.Air supply to air heater through independent blower
7.Batch code embossing facility within sealing jaws (by using negatively etched character type fount)
8.Trimming of plastic / laminated tubes at the top end
9.Preset counter
10.No–Tube–No–Fill system
11Control sensor for non ejected tubes
12.Low air pressure switch
13.Emergency stop
14.Fixed position machine stop


tooth paste filling (1).png

tooth paste filling (2).png

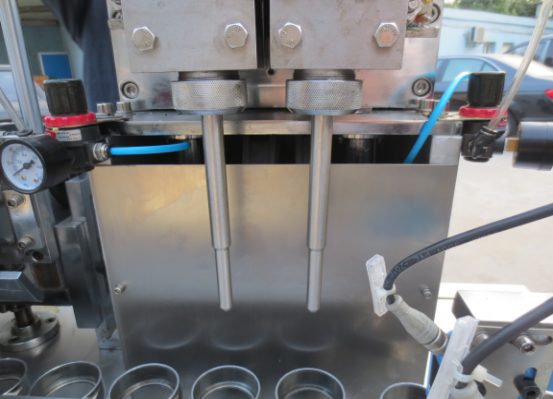

tooth paste filling (3).png

tooth paste filling (4).png


Technical data:

No.

Item

Characteristics and parameters

1

Tube diameter(mm)

22--38

2

Filling volume(g)

50~180

3

Accuracy(%)

±1%

4

Production speed(Pcs/min)

70-90

5

Power(Kw)

4.5

6

Voltage

380V 60Hz

7

Air consumption(m3/h)

60

9

Air pressure

0.6Mpa

10

Weight(Kg)

≈1750


Electric  part list:

No.

Item

Quantity

FROM

1

Touch screen

1

Taiwan WEINTEK

2

Frequency converter

1

weichuang

3

PLC

1

Vigor

4

Electric Motor

2

Suzhou AUX

5

Color code trap

2

sick

6

Cam indexers

1

Shandong80model

9

Main motor

1

Taiwan TWT

10

Bearings

150

Haerbin

11

Hold-in range

6

China

12

Seal ring

44

China

14

Double role cylinder

2

Germany FESTO


Yeto Machine is a professional manufacturer and supplier of various machine. Please rest assured to buy the high-end automatic double heads toothpaste tube double colors filling sealing machine with competitive price from us. We will offer you good after-sale service and fast delivery.
