Semi Automatic PLC Control Ultrasonic Plastic Tube Sealing Machine

1.1. GENERAL DESCRIPTION Thank you choose our company production of HX - 005 ultrasonic sealing machine, hot plastic ultrasonic machining, is the use of friction...

Send Inquiry

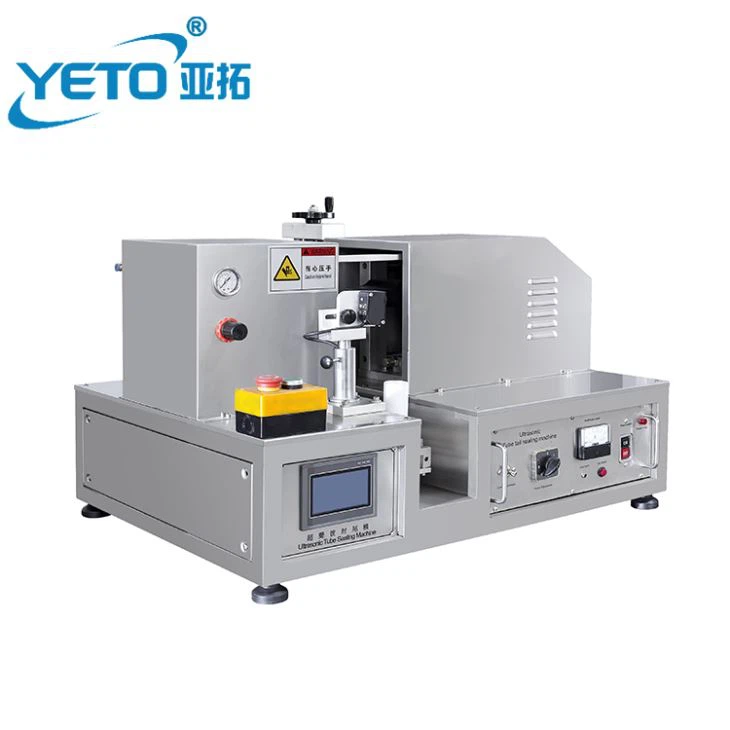

Semi Automatic PLC Control Ultrasonic Plastic Tube Sealing Machine


1.1. GENERAL DESCRIPTION
Thank you choose our company production of HX - 005 ultrasonic sealing machine, hot plastic ultrasonic machining, is the use of friction between workpiece surfaces of high frequency and make the molecules to generate heat rapidly, when this enough heat to melt work, stop the ultrasonic vibration, the workpiece surfaces by melting and solidification, complete processing program.


1.2.PERFORMENCE AND SPECIFICATION
HX - 005 ultrasonic sealing machine change 220v / 50hz power supply into 20 KHZ or 15 KHZ high voltage electric energy, its principle is the amplitude of wave crest of the longitudinal wave transmission gap to new materials and in the case of pressure, the two plastic materials contact with parts of the molecule collisions produce melting, make contact with a plastic fusion, the purpose of processing.


Has the following advantages:
1.Welding speed fast, welding high strength, good sealing;
2.To replace the traditional process, low cost, clean pollution-free and will not damage to the workpiece;

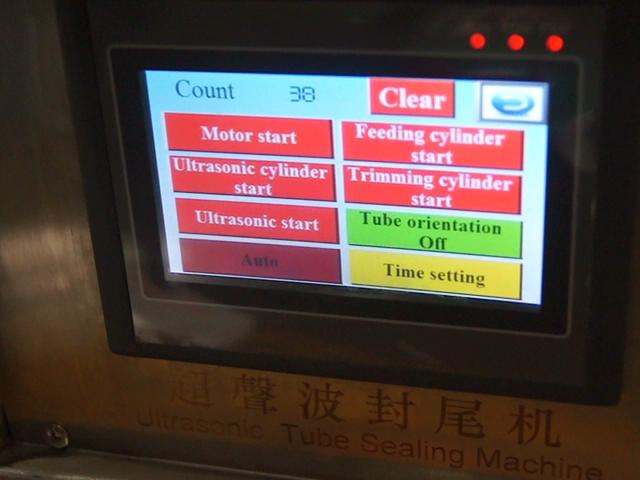

3.Stable welding process, welding joint parameters can be set by equipment with controller, easy operation, convenient maintenance.


Model:UFS001
Working Frequency: 15KHZ
Max Output Power: 2.2KW
Thickness of plastic tube: 0.1~1.0(up to the concrete materials)
Diameter of sealing tube: 10-50mm
Operating: Automatic/manual detection
Pressure: 0.2~0.8Mpa
Supply Power: AC220V±5% 50HZ±1%
Outer Dimension: Ultrasonic Generator:500*470*150mm
Support: 1280*400*520mm
Weight: 85kg
Working Temprature: 0~40℃


Yeto Machine is a professional manufacturer and supplier of various machine. Please rest assured to buy the high-end semi automatic plc control ultrasonic plastic tube sealing machine with competitive price from us. We will offer you good after-sale service and fast delivery.
