Semi Industrial High Capacity Paste Aluminum Tube Filler and Sealer Machine

Filling & Sealing Machine for Aluminum Tubes Metal hose filling and sealing machine, the main use of metal hose as a packaging material of the quantitative filling, sealing.

Send Inquiry


Semi Industrial High Capacity Paste Aluminum Tube Filler and Sealer Machine


Filling & Sealing Machine for Aluminum Tubes
Metal hose filling and sealing machine, the main use of metal hose as a packaging material of the quantitative filling, sealing. This machine is widely used in pharmaceutical, cosmetic, food, chemical and other industries packaging. Such as: ointment, adhesive, AB glue, neoprene, epoxy glue, skin cream, hair cream, shoe oil, toothpaste and other liquid or paste material filling and sealing.


Work Process:

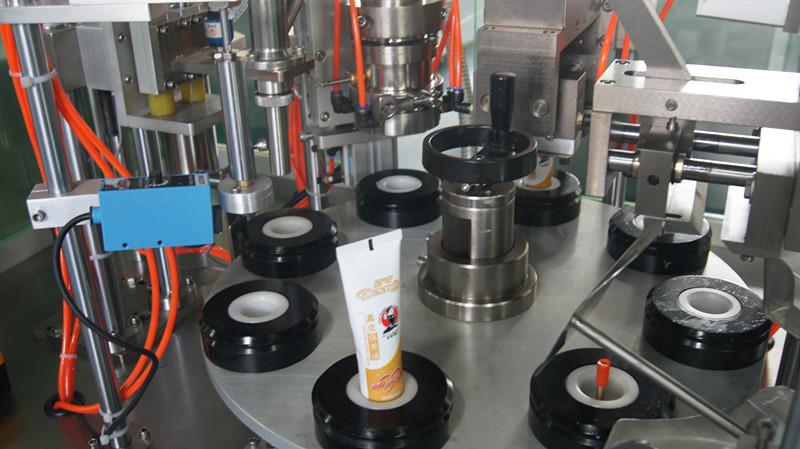

Manual insertion of the metal hose into the indexing tube socket (16 stations), the use of mechanical transmission indexing, photoelectric detection, to confirm the tube and inserted correctly, the filling system began to automatically measure filling, and then two-way four Folded end, print batch number, finished exit.


Structural Features:
Filling speed and measurement accuracy to facilitate the adjustable, stable performance. Each turn a station, to complete the metal four-fold four-fold function. The use of automatic folding cam, safe airtight, to ensure product quality. This machine adopts stepless speed regulation. For different diameter of the metal pipe, as long as the mold can be put on a different diameter, the replacement is both convenient.





Main Technical Parameters

Power Supply

380(220) V/50Hz

Filling Volume

10-50ml

50-100ml

100-200ml

Volume Precision

≤±5℅

≤±3℅

≤±2℅

Productivity

30pcs/min

Tube Diameter

ф16-ф35mm

Dimension(L×W×H)

550×650×1700mm

Weight

220kg


Yeto Machine is a professional manufacturer and supplier of various machine. Please rest assured to buy the high-end semi industrial high capacity paste aluminum tube filler and sealer machine with competitive price from us. We will offer you good after-sale service and fast delivery.
