The parts that contact the materials are all made of 304 stainless steel. It is suitable for glass bottles or plastic bottles whose body will not be easily deformed after vacuum extracting.
This wheel is to adjust the height of the full filling and sucking part according to the bottle height.
The filling nozzle adopts vacuum filling design. It can fill the glass bottles or the stiff plastic bottles.
The positioning of the perfume filling machine. It can fix the bottles under the filling nozzles. It can increase the filling accuracy.

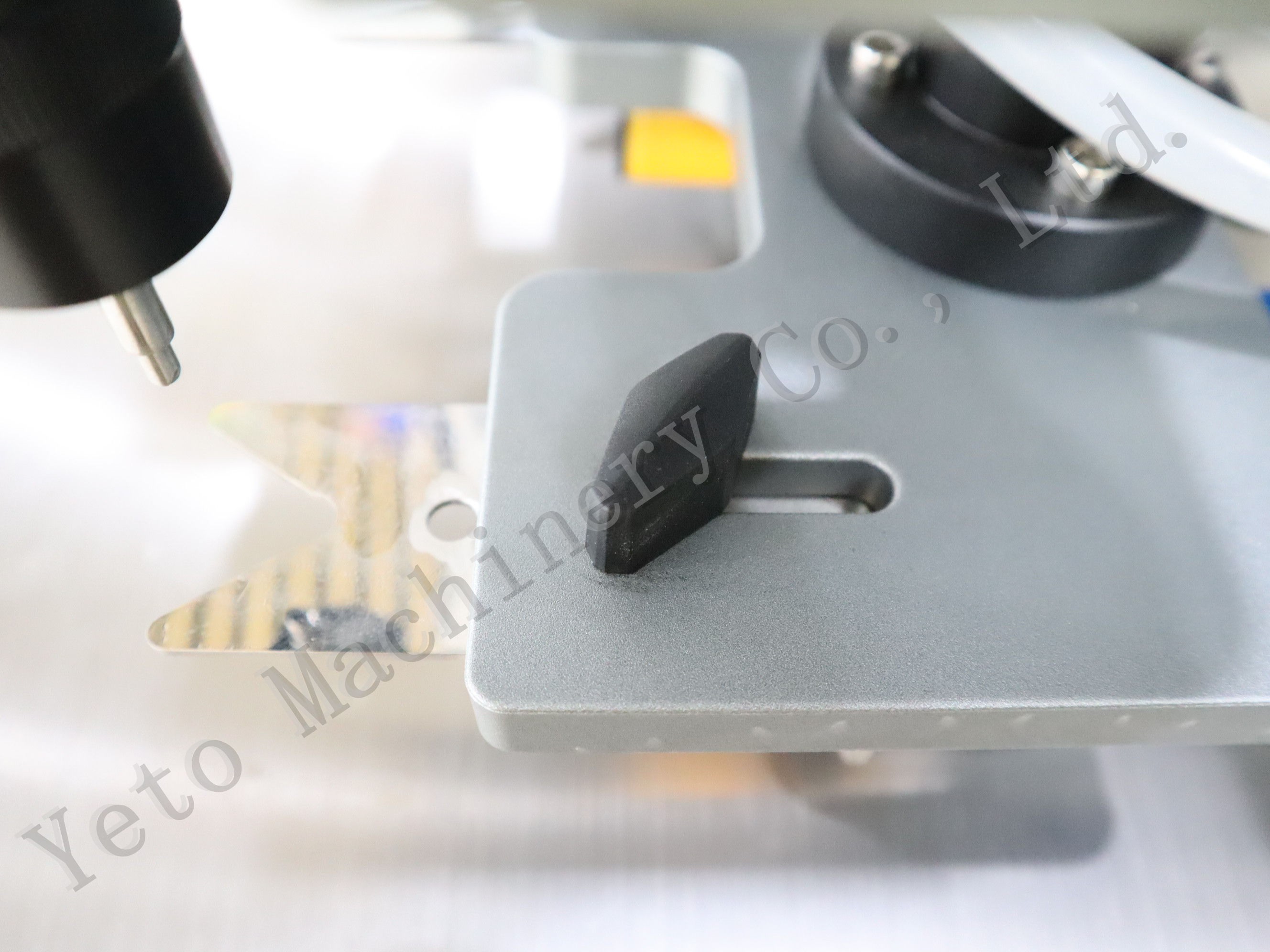

This knob is to adjust the distance of the positioning device.
The machine needs to work with the air compressure. The working pressure of the machine is around 0.4-0.6MPa.
The products are divided into two styles, one is general type, another is explosion-proof type. If you need an explosion-proof type, please tell us while placing the order. However, the electromotor, switches and connecting cable are all explosion-proof, or adopting explosion-proof measures. The other vacuum parts of the machine are all the same.
Technical parameters
Supply voltage | 3/N AC380V/220V |
Power consumption | 0.37kw |
Noise | ≤70dB(A) |
Filling accuracy | ±1% |
Rated filling volume | 1000ml |
Apply scope | 5~1000ml |
Production capacity | 10~40B/M |
Body height of the using bottle | ≤250mm |
Applicable bottle body diameter | ≤φ90mm |
Maximum diameter | ≤φ20mm |
Minimum diameter | ≥4.5mm |
Applicable diameter for bottle mouth | ≥5mm |
Adjustable liquid level height(From the mouth) | 26-50mm |
Applicable temperature | 0~30℃ |
Vacuum pump | XD-020 (explosion-proof type 2X-4A) |
Air extraction rate | 5.5 (explosion-proof type 4) |
Motor power | 0.75kw |
Outer dimension | 700*500*1300mm |
