Structure

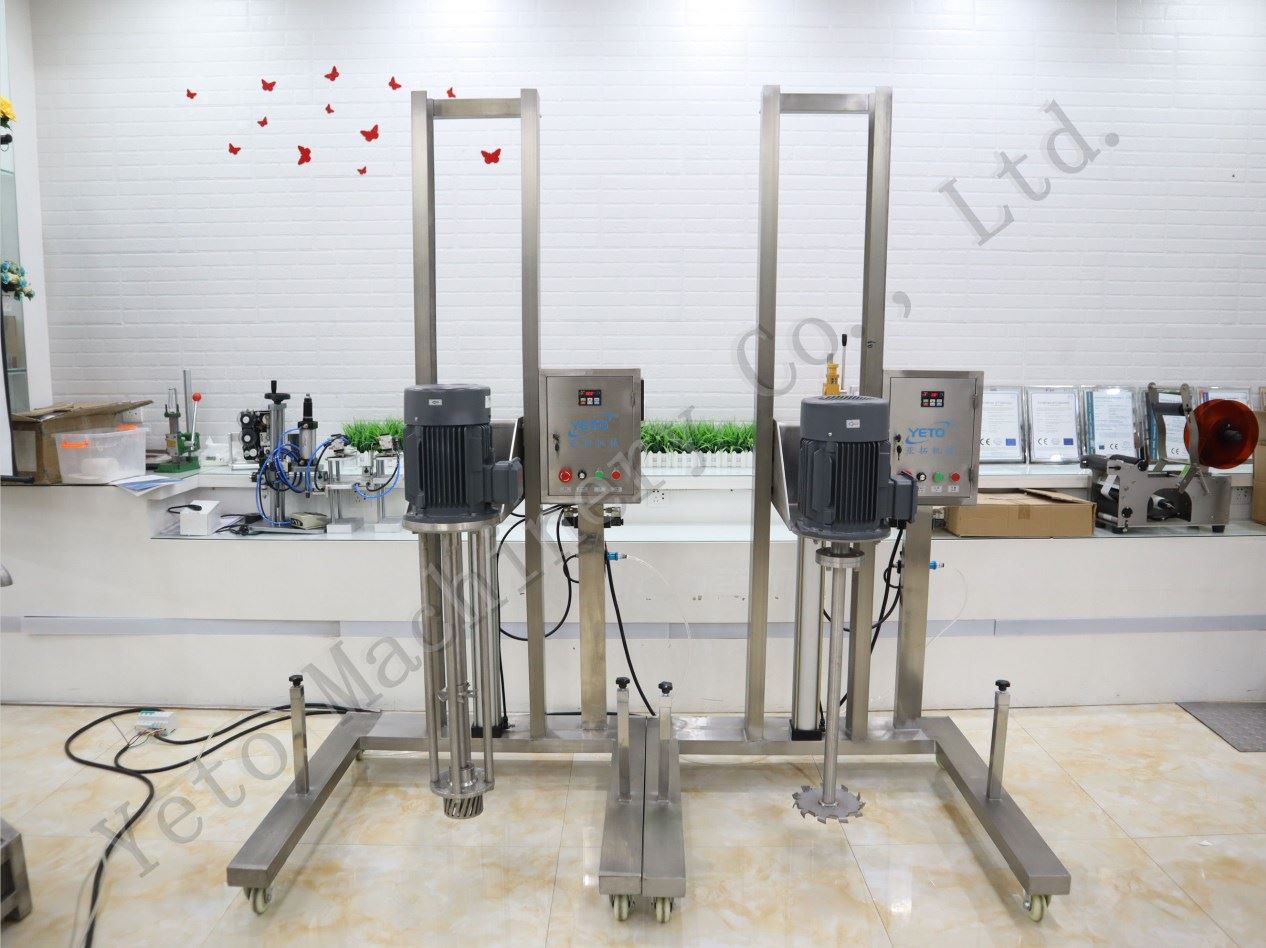

This series of machines are: support frame, motor, homogenizing head, cylinder, electrical control systems and control devices. Compact, easy to install, clean and generous appearance.
Homogeneous pinion lift off with pneumatic type, up off the smooth and flexible. Homogeneous gear shaft and main parts are all made of stainless steel, wear resistance, corrosion resistance, excellent quality and long service life, smooth operation, low noise, any rise in the operation down, according to material viscosity, speed arbitrary regulation to prevent the material flying, dispersion impeller for a variety of materials.
Installation method is flexible to adapt to a variety of venues operation is extremely simple, easy maintenance, strong and beautiful body. Advanced features, easy to operate, safe facilities will bring your work pleasant.
Capacity | 100-300L | Material connect material | SUS316/304 |
Power | 4kw 380v 50Hz | Material of frame | Sus/Iron |
Motor | Beide Siemens motor | Inverter | Delta |
Air pressure | 4-8 kg/cm2 | Homogenizer speed | 0-2880r/min |
The height of homogenizer can be lifted | 1000-1200mm | Size | 1.0*1.0*2.1m |
