What Is A High Quality Lotion Homogenizer Emulsifier for Oil and Water Cosmetic Making Machine
Video introduction
Product description

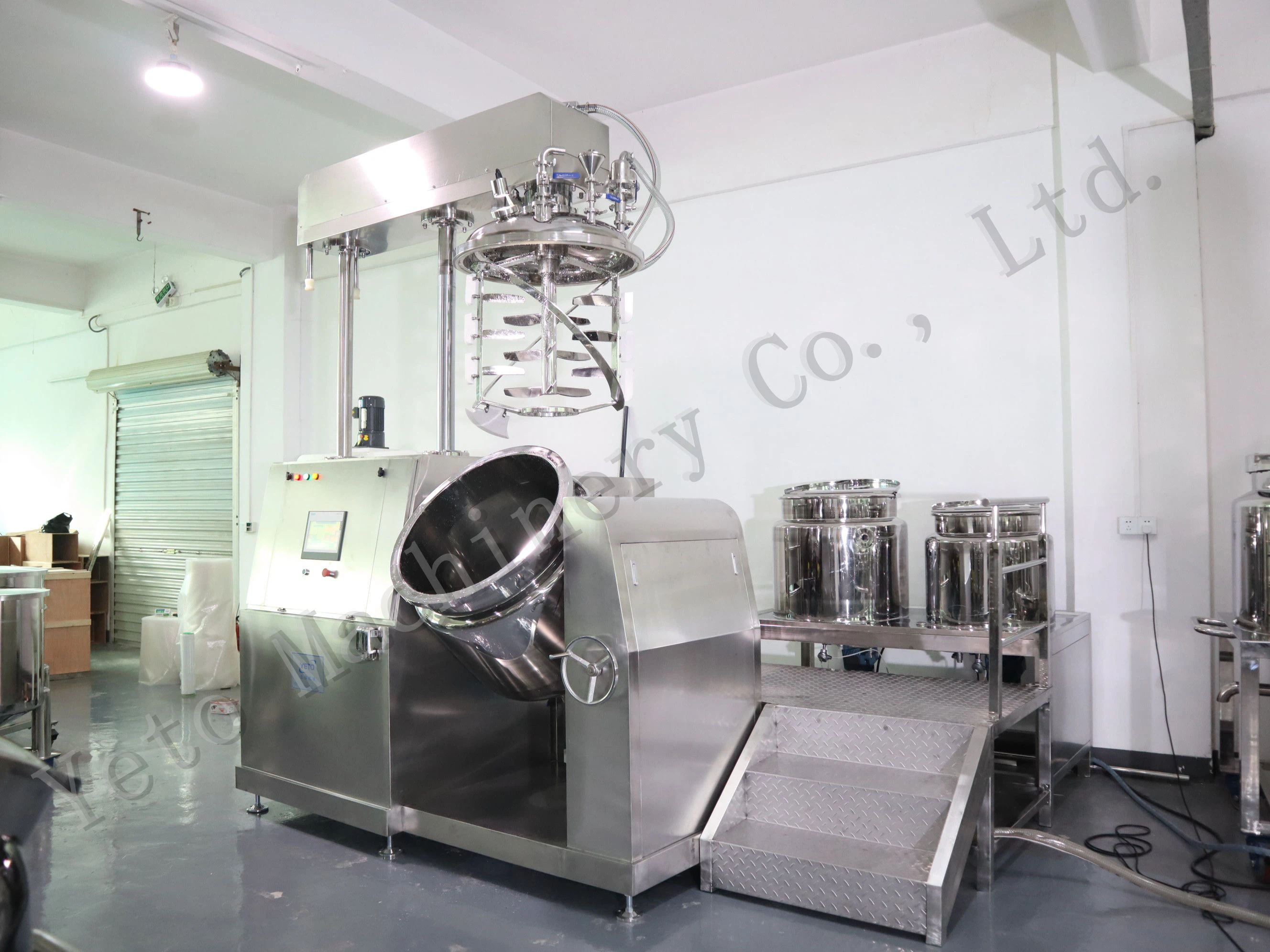

The vacuum emulsifier is professionally designed according to the ointment manufacturing process of cosmetics and ointments etc. products through introducing advanced technology from abroad. The machine unit is composed of pre-treating boiler, vacuum emulsifying and blending boiler, vacuum pump, hydraulic system, dumping system, electric control system and work platform etc. The machine unit is featured by simple operation, stable performance, good homogenizing performance, high production efficiency, convenient cleaning, reasonable structure, small land area and high automatic degree etc.
Product parameter
Capacity | 50L, 100L, 200L, 500L, 1000L, 2000L, etc |
Uasage | Cosmetic cream, paste, ointment, shampoo, lotion. etc. |
Material | Contact part: SUS316L Other: SUS304 |
Homogenizing speed | 0-2880rpm |
Mixing speed | 0-63rpm |
Heating method | Steam/electric |
Operating | Automatic |
Details
-The top of the main pot lid is equipped with a spice inlet, feed inlet, cleaning system inlet, viewing window and light, air filtration and vacuum system, etc. And the pot cover takes the form of auto-move up and down.

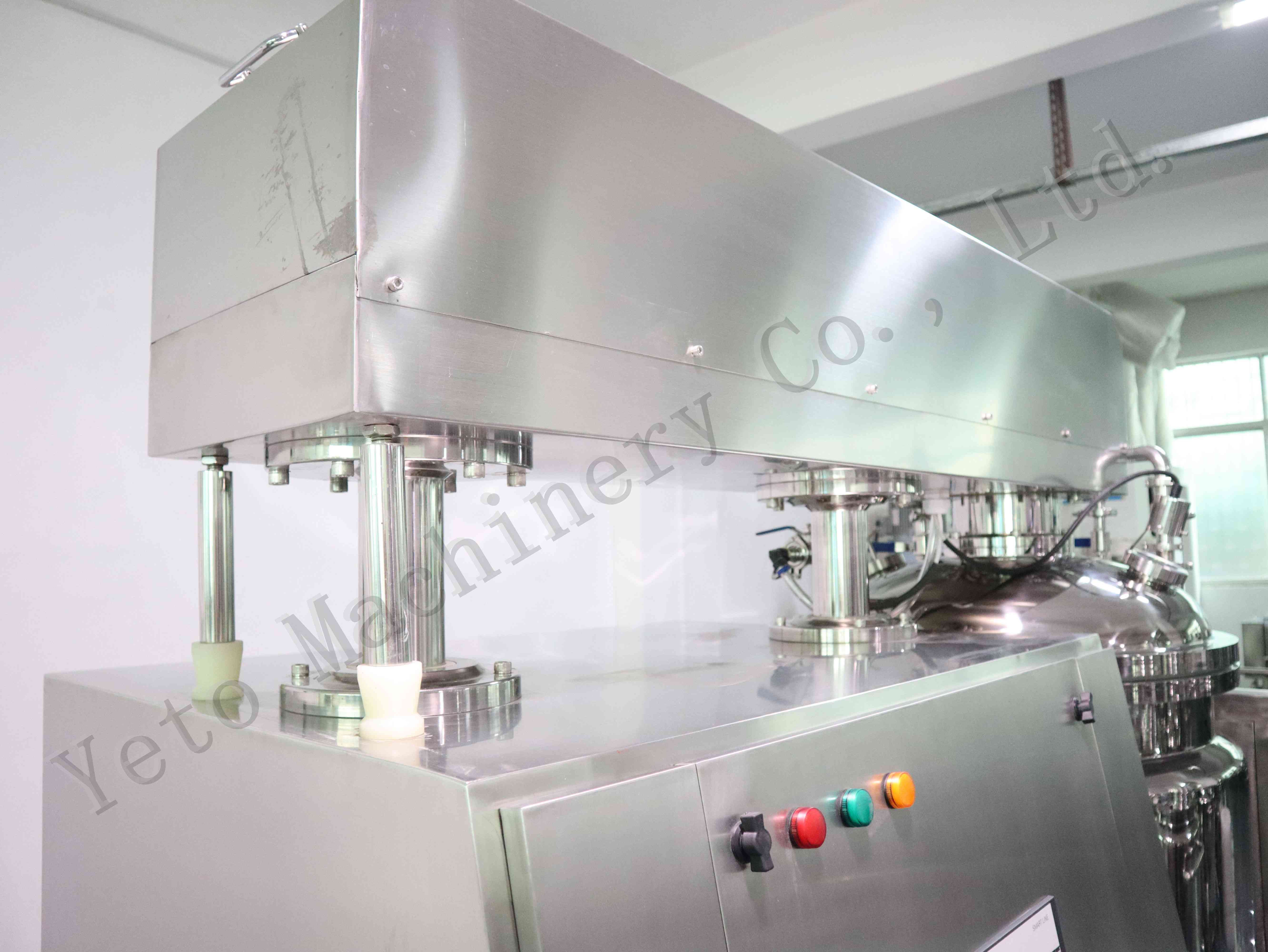

Hydraulic lifting system
-This machine adopts hydraulic lifting system, and the operation is stable, which makes it easy for cleaning and material transfer of the mixing tank.

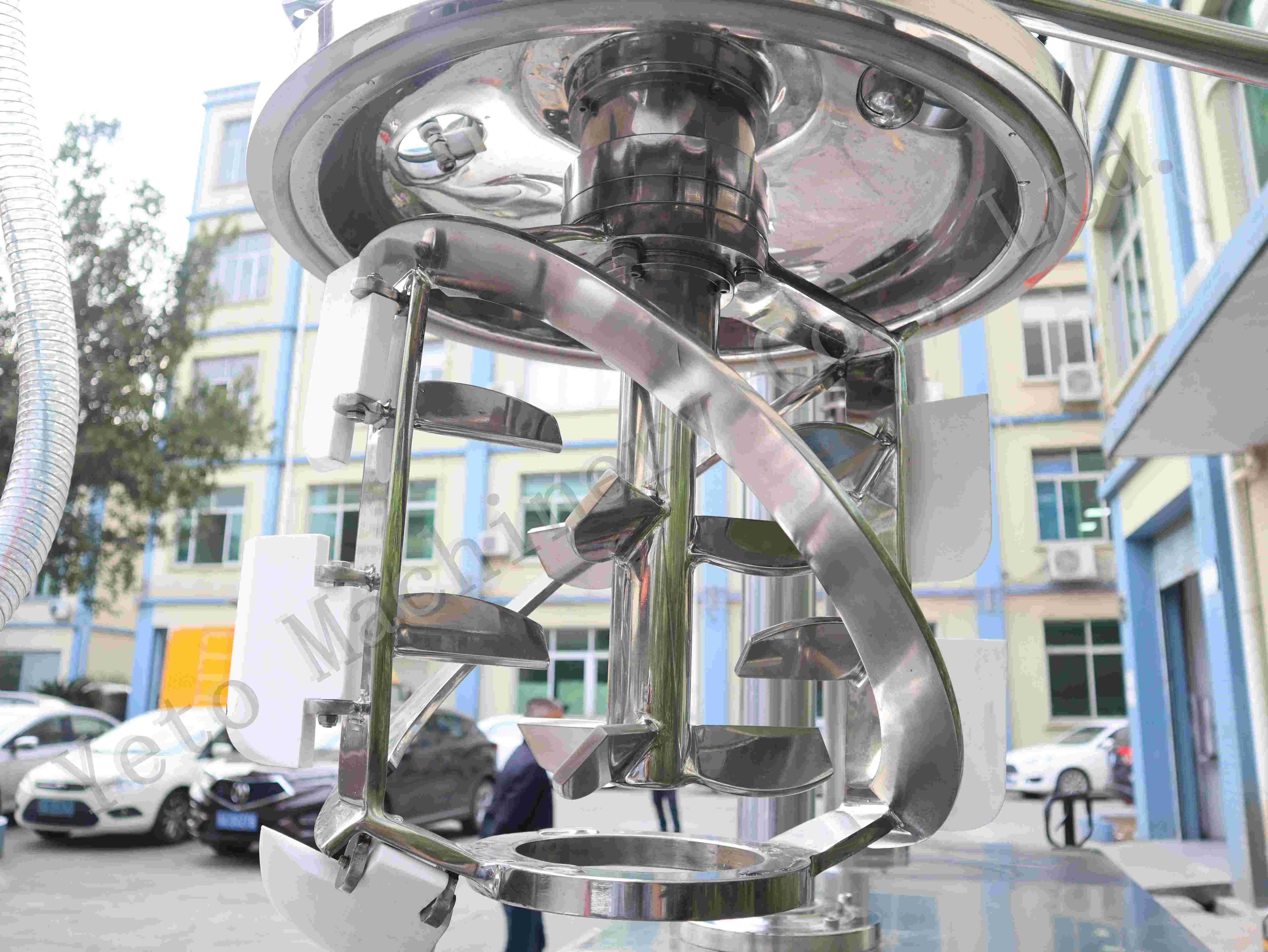

Bi-direction stirring paddle
-Stainless steel 316 material, bi-direction stirring paddle makes the material mixing more evenly. The mixing speed can be adjusted from 0-63rpm. And it is equipped with white scrapers to reduce the adhesion of the material to the inner wall and makes it evenly heated.
Touch screen design
-Using PLC system, intelligent touch screen design, simple operation and clear functions.
-We also provide economical button control design. Cutomers can choose touch screen or button control according to your need.

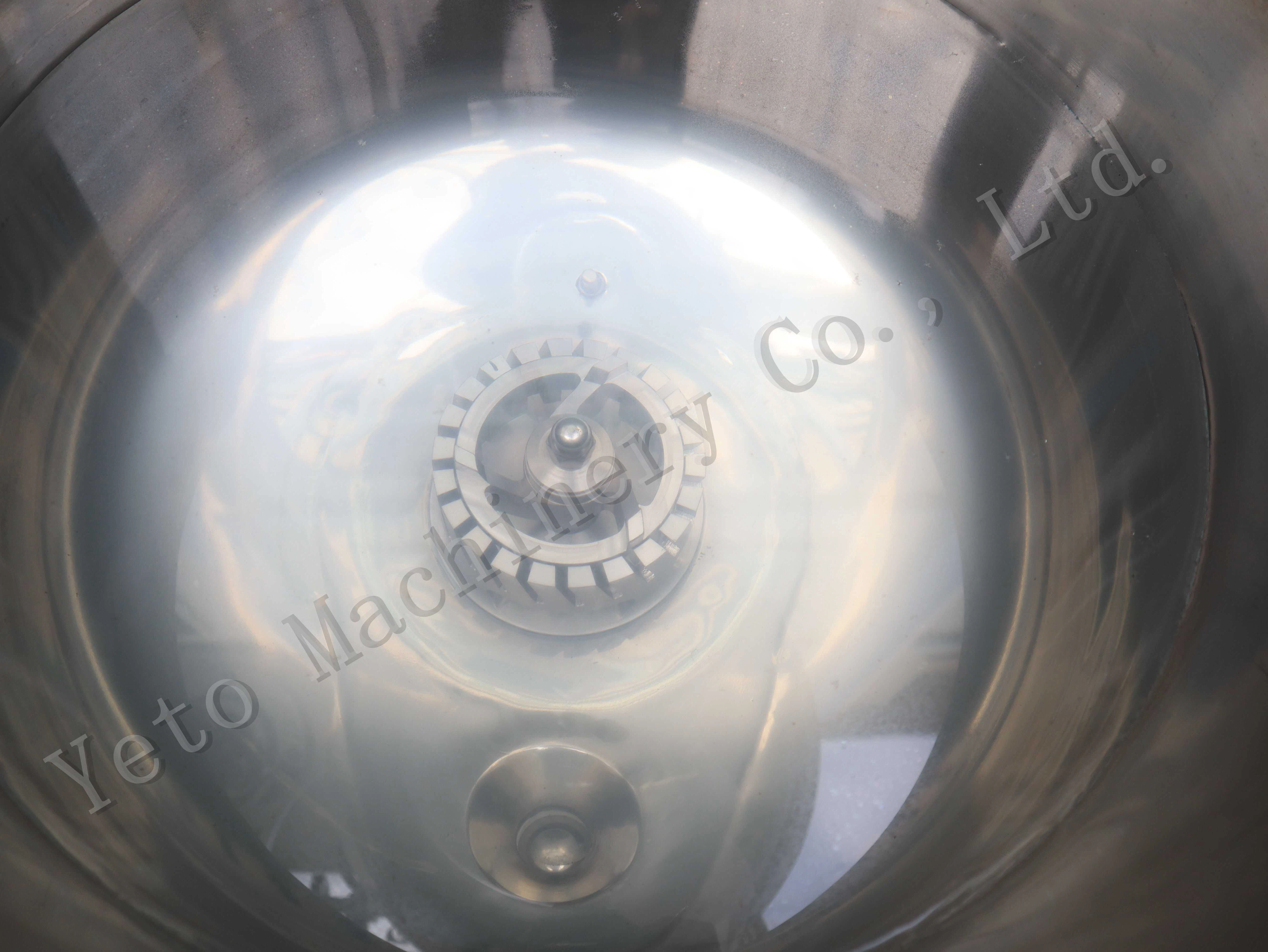

Main tank inside
-The bottom is equipped with a high-speed mixing and homogenizing head. The speed can reach 0-2880rpm, so the raw materials are fully emulsified and mixed.
-The heating method can be electric heating or steam heating. The temperature can be set and controlled.

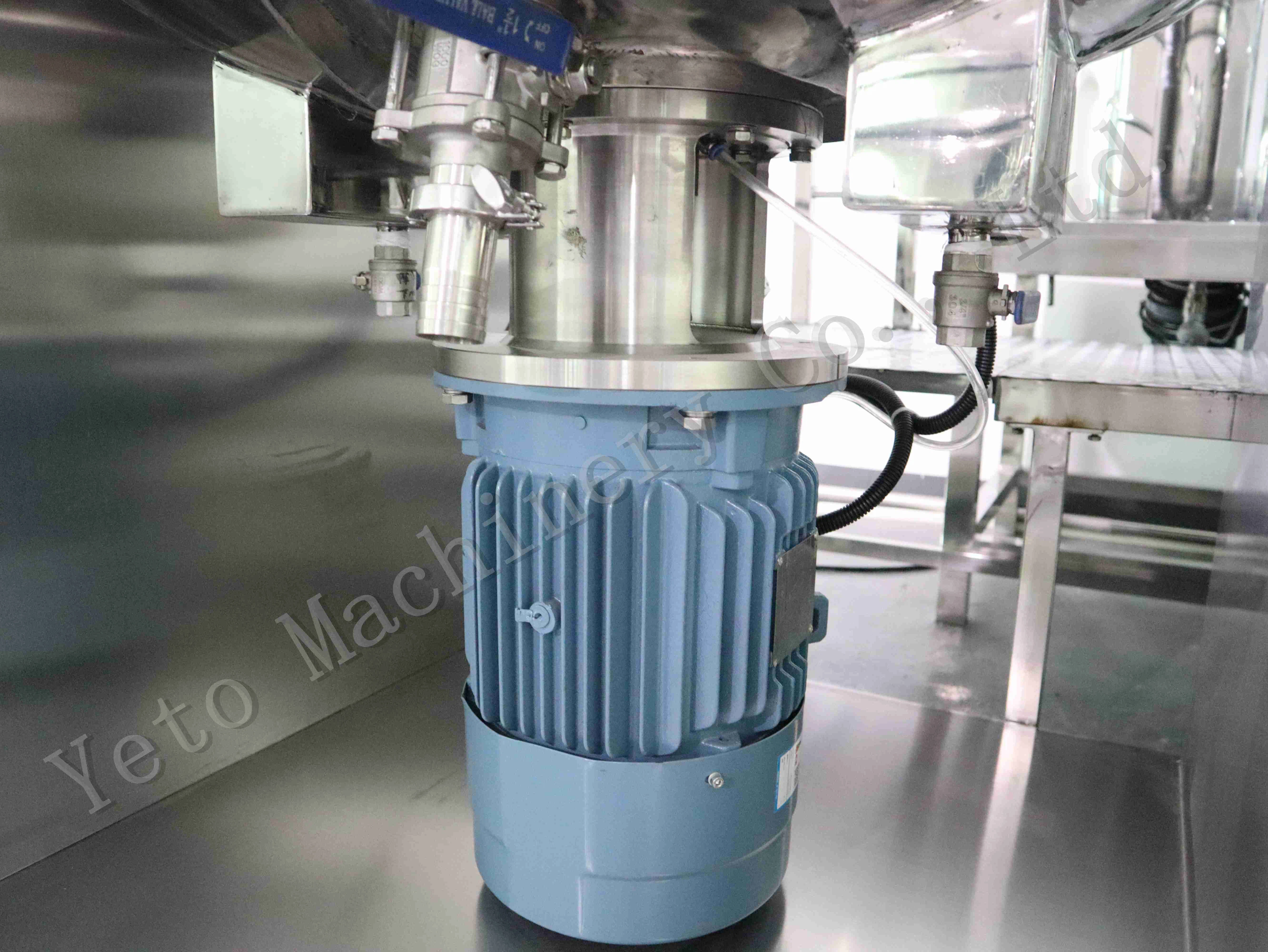

Homogenizer motor
-The highest configuration of our motors is ABB motors, and Simens and Beide are available under the Siemens brand.
The material in water pot and oil pot is sucked into emulsifying pot in vacuum by transmission pipes. The emulsifying pot is designed to be titted over in case to dump products. The material can be heated by electrical heater with help of heat-conductive medium it can also heated by steam. The heat temperature can be set and automatically controlled. Material cooling is available. It is easy to operate. There is temperature- keeping sheet betweer inner and out sheath Different stirring modes can be used simultaneously or individually. All the processes of crushing, emulsifying, mixing, stirring and dispersing can be accomplished within a short time. The area touching working material is made of stainless steel(Commonly used 304, medical 316L ), With innter surface polished, the vacuum stirring equipment meets the need of hygiene and are manufactured in accordance with GMP standard. It is best for the production of ointment,cream, etc. lotion making machine.
Application
Yeto Machine is a professional manufacturer and supplier of various machine. Please rest assured to buy the high-end what is a high quality lotion homogenizer emulsifier for oil and water cosmetic making machine with competitive price from us. We will offer you good after-sale service and fast delivery.
