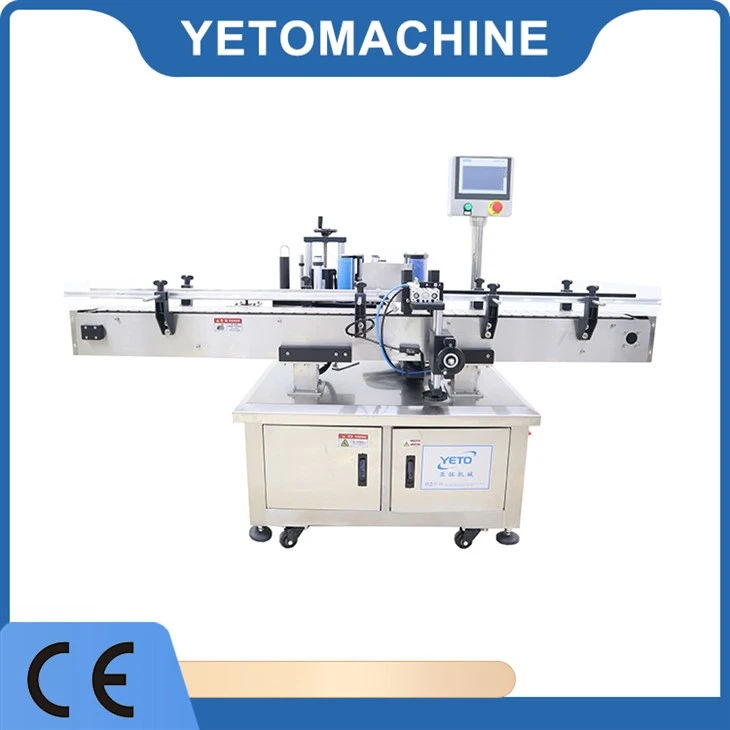

Product description
It is suitable for labeling on the circumferential surface of round bottle objects. It can be affixed to single and double labels. The front and back double standard spacing can be flexibly adjusted. For example, gel water round bottles, food round cans, etc., are widely used in cosmetics, food, medicine, Disinfected water and other industries. Optional circumferential positioning detection device can be used to label the specified position on the circumferential surface. This machine mainly for labeling round bottles, like hand sanitizer bottle labeling or hand washing bottle labeling, no matter for paper sticker or transparent stickers.
Parameter
Label length | 20~300mm |
Label width (backing paper width) | 20~170mm |
Product diameter (round bottle) | φ15~φ120mm |
Product height | 25~300mm |
Standard roll outer diameter | φ300mm |
Standard inner diameter | φ76mm |
Labeling accuracy | ±1mm |
Marking speed | 5~19m/min |
Labeling speed | 25~45pcs/min |
Conveying speed | 5~18m/min |
Weight | 185kg |
Frequency | 50HZ |
Voltage | 220V |
Power | 570W |
Equipment dimensions (L*W*H) | 1950*1200*1530mm |
Air pressure | 0.4~0.6MPa |

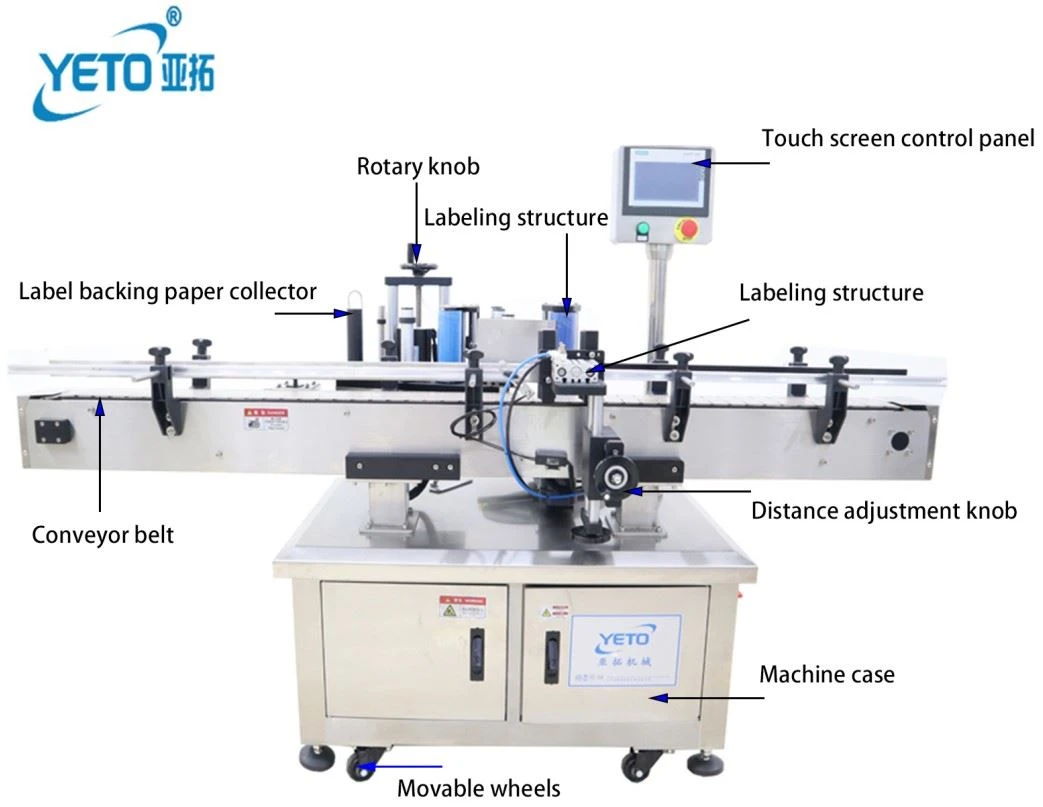

Details

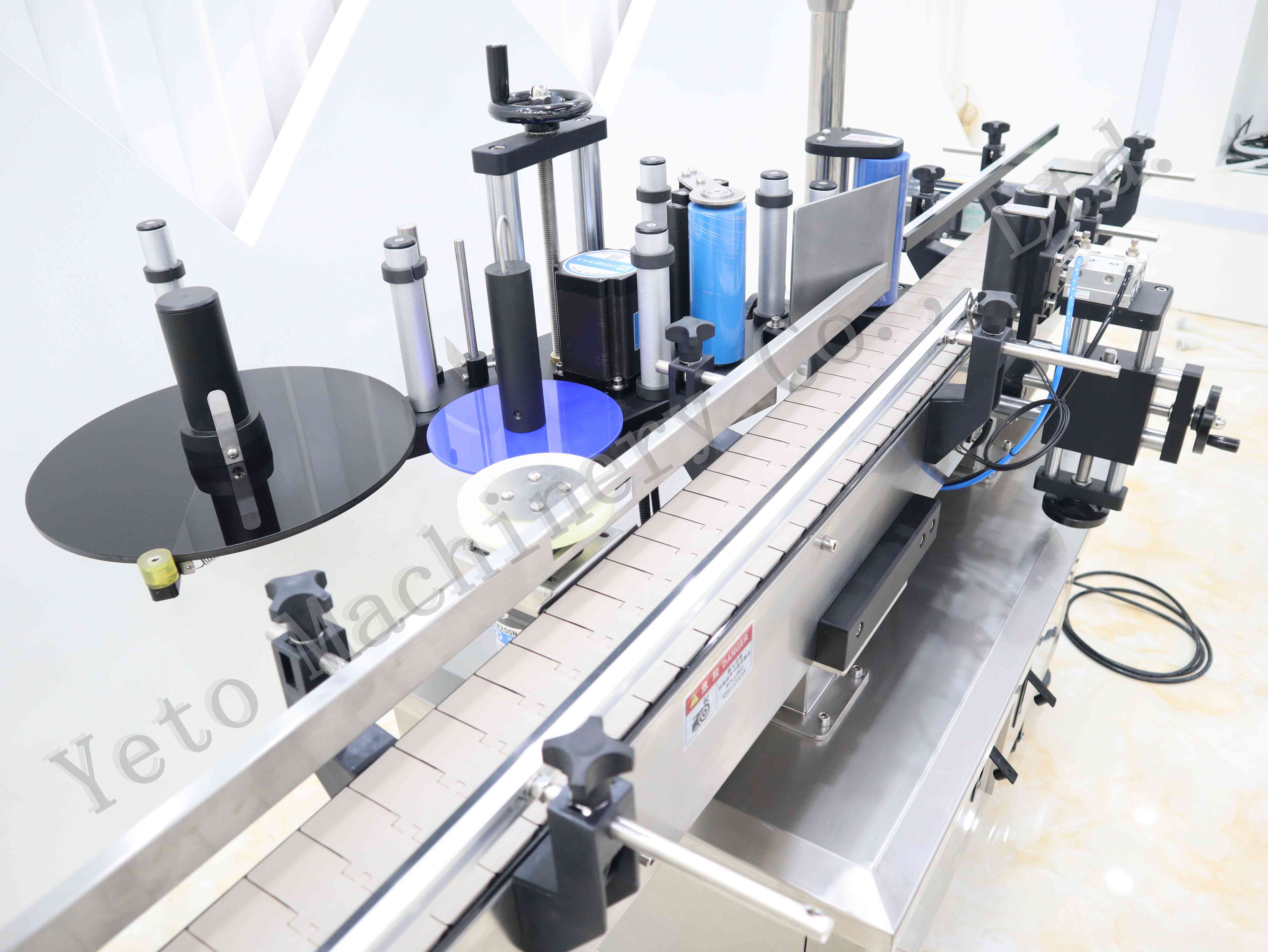

The chain conveyor is designed with guard railing which can be adjusted according to container diameter, the larger weight capacity of the conveyor ensure products can be transported smoothly and stably.

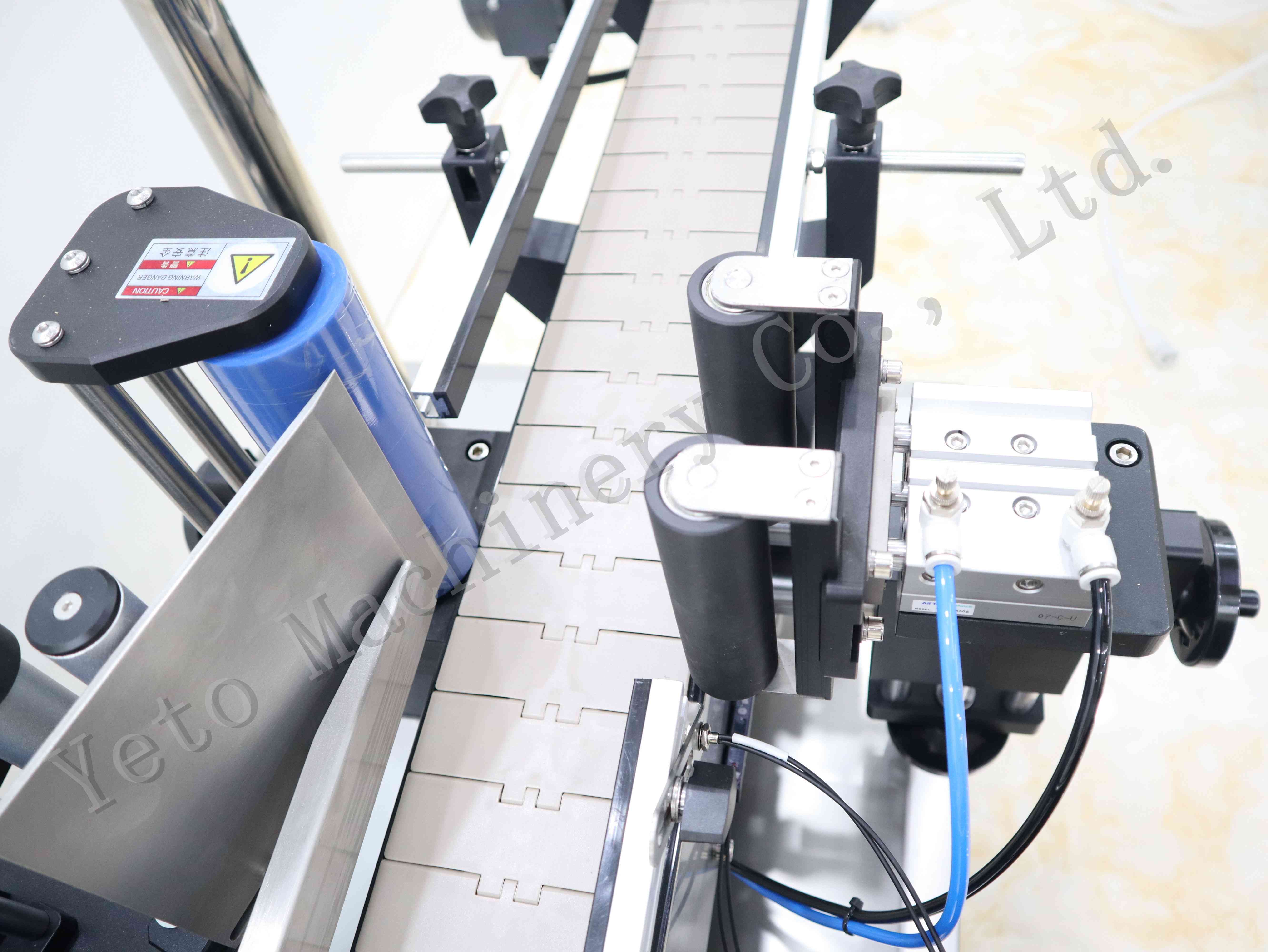

It is suitable for round bottle products. This device is for round containers, which can ensure that there is no bubble on the stickers, so as to improve labeling effect.

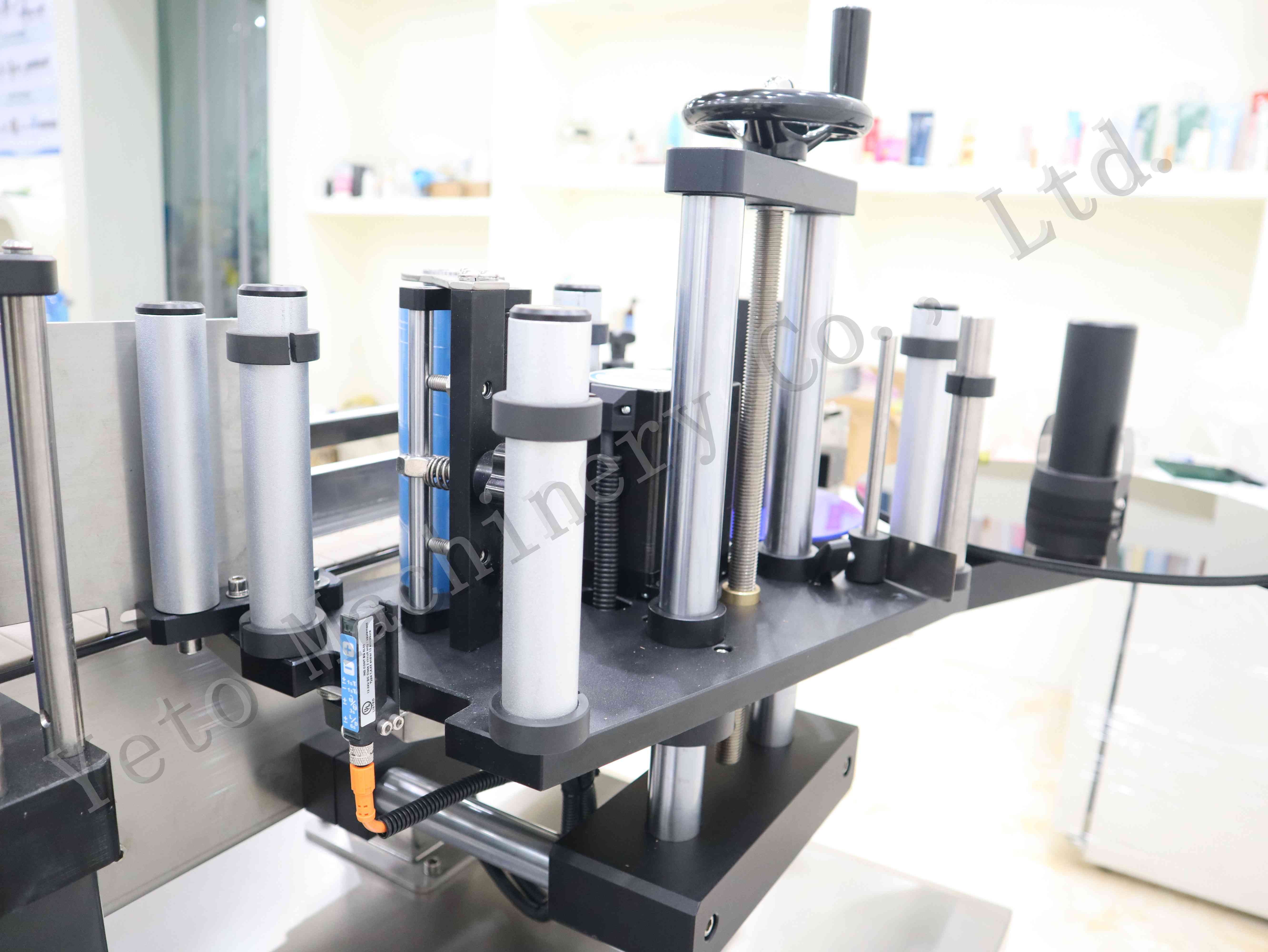

With high quality electric eye which can detect label stickers accurately, each label stickers can be controlled well, prevent from missing or wasting label stickers, improve labeling quality.
The barometer can be used to watch the air pressure in real time, which ensures the safety when operation.
Application
This machine is mainly suitable for labeling of self-adhesive round bottles such as PET bottles, plastic bottles, glass bottles, metal bottles, etc. It is widely used in catering, medicine, daily chemical, chemical and other industries.
The optional color code printer and inkjet printer can print the production date and batch number information on the label to realize the integration of labeling and coding.
It can also use for paper, paper with plastic film, as well as transparent labels.
product features
1.Configure automatic bottle-distributing mechanism to automatically separate the spacing before guiding the bottle to ensure the stability of subsequent guiding, conveying and labeling.
2.It is equipped with two-fold labeling mechanism to ensure labeling accuracy and secondary extrusion coating for the first time, effectively eliminating bubbles and ensuring tightness at the end of the label.
3.Intelligent control, automatic photoelectric tracking, with no object and no labeling, no standard automatic calibration and automatic label detection to avoid wasting labels and missing stickers.
4.The main material of the equipment is stainless steel and high grade aluminum alloy, which conforms to GMP production specifications. And the overall structure is firm and elegant.
