Description
Technical Parameters
customized pneumatic liquid chemical blending tan
Horsepower: 0.5HP
Torsion:2.5Nm
Inner Diameter of paddle:10.5cm inner diameter:1.5cm
Speed:6800r/min
Length:80cm
Motor brand :Taiwan MBP

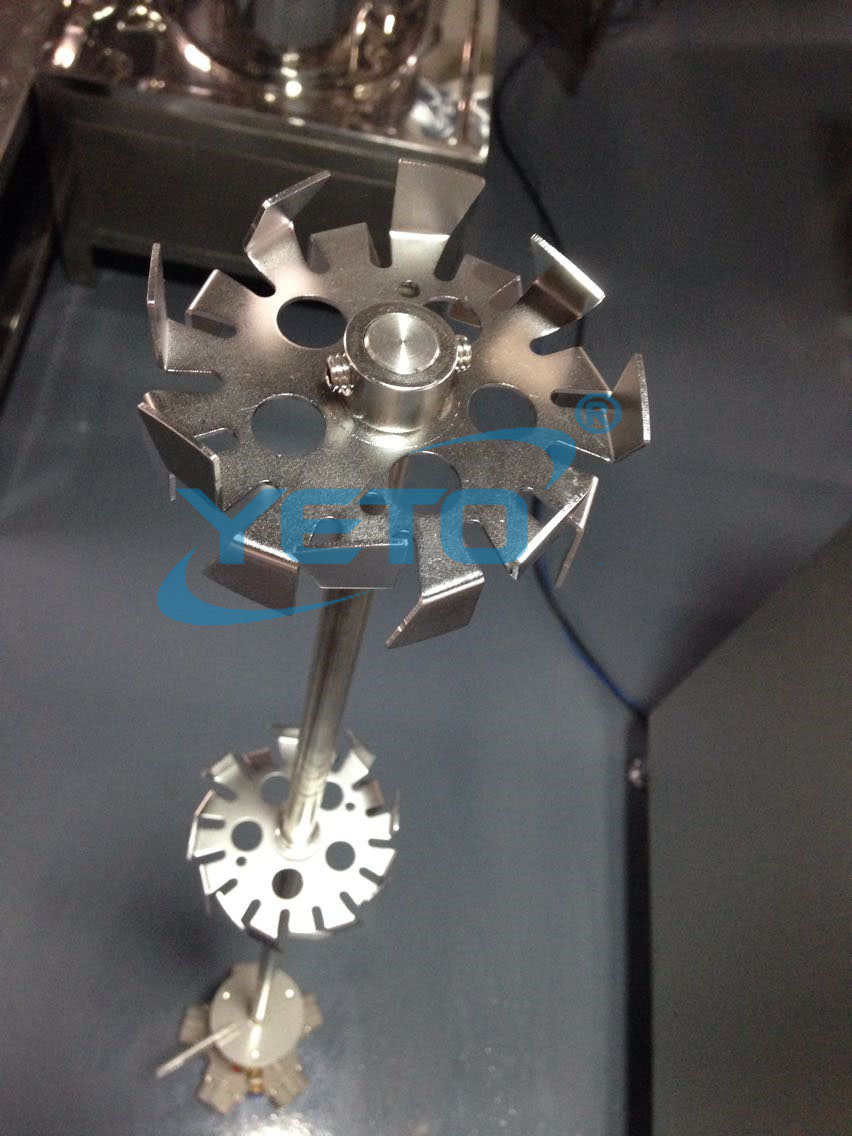

Material of paddle and axle:SUS304
The speed of motor for dispensing is 0-3000rpm/min ,and all control of this machine is pneumatic ,no electronic ,so it can work with products that easy explosive or chemicals that can not contact with any electric part.
As it is single layer ,so it can not heating and cooling ,however it can be made as double jeckets that can be heated .
The volume between 20-1000L can be moveable ,if you need more big volume,the it have to be fix on the floor.The dispenser can be checked below
 |  |
