Product description
The product is a latest product developed by our company specially used for clarification and filtration of liquid, such as cosmetics and perfume etc. after freezing. It is an ideal device for filtering cosmetics and perfume in cosmetic factories. The product is made of high quality 316L stainless steel. The pneumatic diaphragm imported from USA is adopted for pressure source to carry out positive pressure filtration. The connecting pipes are sanitary polishing pipes, which completely adopt rapid installation type connection form, with convenient assembly, disassembly and cleaning.
Parameter
Feeding boiler | Material: 316L |
Cooling boiler | Material: 316L |
Cooling machine | Based on different volume |
Booster pump | Material stainless steel |
Filter | Two stainless steel micro-hole filters, in series (or use board frame filter) |
Platform | Stainless steel platform, aluminum alloy anti-slide board is laid onside |
Pneumatic pump | USA SANDPIPER |
| Specification | 3p, 2.2kw; 5p, 3.75kw; 10p, 7.5kw |
| Power | 380v/50hz |
Refrigeration temperature | -5℃~-15℃ |
Refrigeration liquid | R22 |
Air source pressure | 0.5~0.6MPa |
| Filter pressure | 0.2MPa |
| Stair filter | 1.0μm |
| Two level filter | 0.2μm |
Details
Pneumatic mixing motor
The machine is with pneumatic stirring paddle design, whihc makes it to be more safer and more energy-saving. The mixing speed is about 1440rpm, which is high-speed stirring to fully mix perfume raw materials.
The inner wall of the tank spirals the refrigeration pipeline to enhance the freezing effect and enhance the precipitation of impurities. In addition, it is equipped with a three-blade stirring paddle. The stirring speed can reach 1440rpm to fully mix perfume. The material of the pipe and the stirring paddle are made from stainless steel 316.

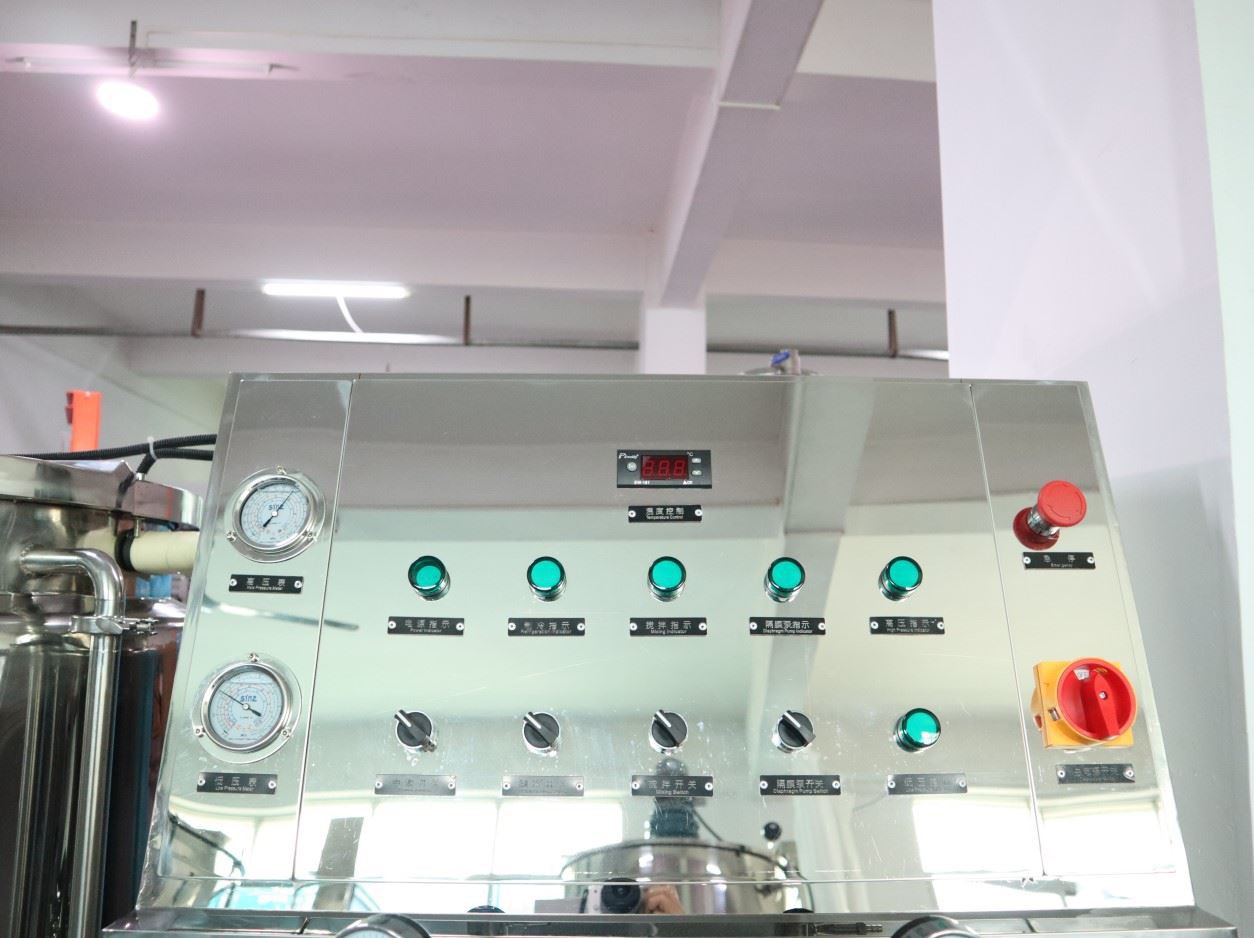

The machine is made with convenient button design, which is easy to operate. It is composed of simple and clear button functions-refrigeration, mixing, temperature control, pressure gauge, etc.
The machine adopts dual stage filter and frame/plate filter to enhance perfume purification through two filter systems. We are equipped with a replaceable filter membrane free of charge, which can be replaced at a later stage.
Application
This machine is specialized used in clarification of fluid after freezing cosmetic water and perfume industries.
Yeto Machine is a professional manufacturer and supplier of various machine. Please rest assured to buy the high-end 50-2000l perfume chiller freezing mixing making machine with competitive price from us. We will offer you good after-sale service and fast delivery.
product features
1.Stainless steel heat preservation freezing tank and titanium metal coil pipe
2.Freezing unit (place of origin France)
3.Anticorrosive pneumatic diaphragm pump (place of origin USA)
4.Polypropylene microporous filtration film
5.Stainless steel moveable supporter sealing type electric control system and sanitary pipe fittings and vaves
