Autoamtic Heat Liminated Soft Plastic Tube Cream Filler Sealer Machine
Products Description
Key Features
◆Compact Design
◆Driving Parts Fully-closed
◆Pneumatic Tube Washing & Feeding
◆Intelligent Temperature Control and Cooling System
◆Easy to Operate and Adjust
◆316L Stainless Steel Contact Parts to meet GMP Standard
◆Safety Interlock Shutdown when Door is Open
◆Overload Protection Provided
◆Automated Working process from Tube Loading to Finished Products Output
◆Automatic Orientation Effected by Photoelectric Induction
01
Automated control technology
The machine utilizes advanced automation control systems such as encoders, sensors, and control software to achieve precise control without the need for excessive manual intervention, reducing time, labor costs, and improving efficiency.
02
Safety
This machine is made of food-grade plastic, making it suitable for use in the food and pharmaceutical industries to ensure product cleanliness and hygiene.
03
Heat seal technology
The machine uses heat seal technology to seal the soft tubes, ensuring the firmness and sealing of the seal to prevent product leakage.
04
Durable
The Automatic Heat Laminated Soft Plastic Tube Cream Filler Sealer Machine is made of high-quality stainless steel material that is corrosion-resistant and easy to clean, ensuring a lifespan of 5 to 10 years or even longer without easy damage.
Optional Devices
- Chiller
- Date Coding Embossing
- Automatic Tube Feeding Magazine
- Change Parts
Technical Parameters
| 1,Filling volume: | 1-250ml/unit (Adjustable) | 8,Machine power: | 5kw |
| 2,Filling accuracy: | ≦±1﹪ | 9,Power: | 380V/220V (Optional) |
| 3,Capacity: | 1800-3600unit/hour(Adjustable) | 10,Equipped motor: | 1.1KW |
| 4,Tube diameter: | Φ10-60 mm | 11,Inner wind motor: | 0.37kw |
| 5,Tube length: | 50-240mm | 12,Dimension: | 1950×1000×1800(mm) |
| 6,Hopper volume: | 40L | 13,Weight: | About 850 Kg |
| 7,Air pressure: | 0.4-0.6 MPa | 14,Convulsions motor: | 0.37kw |
More details

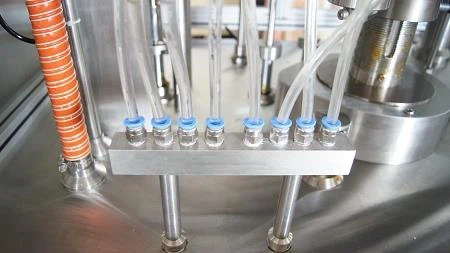

high effective
Inside the machine, there are multiple filling heads aligned to fill neatly arranged tubes. The tubes are placed on a rotating worktable, and as the table turns, each tube passes under the filling heads one by one, completing the filling process.
The machine also employs hot melt technology to seal the tube ends, ensuring strong and secure seals and preventing product leakage.
operate area
- Control panel. The control panel is designed to be intuitive, simple to understand, and easy to operate, allowing users to easily set parameters such as filling volume and sealing time.
- Conveyor belt. The speed can be adjusted according to the size of the soft plastic tubes, ensuring smooth operation and avoiding the tubes from shaking or clogging during the filling process.
- Filling area. This machine uses automatic filling technology to accurately control the filling volume, ensuring that each soft plastic tube reaches the predetermined filling capacity.

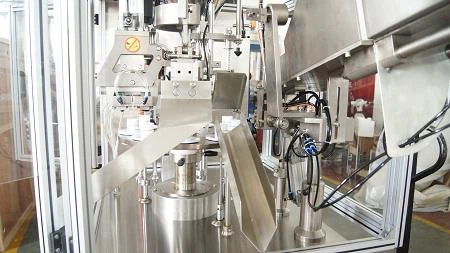

Automated production process
The production is illustrated in the image, showing the conveyance and handling of hoses within the machine. This indicates that the machine can handle the entire production process, from filling to sealing, achieving full automation.
Additionally, the image shows multiple filling heads operating simultaneously, allowing the machine to automatically complete the filling process without human intervention, thereby increasing production efficiency.

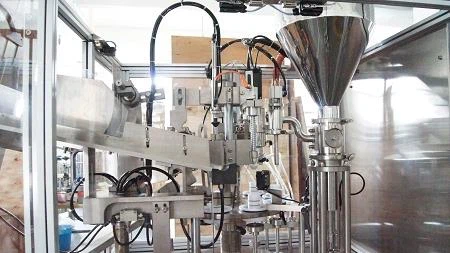

High precision
- Hopper: The hopper is located on the right side of the image and is used to store the paste products to be filled. The product is directed to the filling head through gravity or pumping.
- Filling Head: The filling head is positioned below the hopper, drawing the paste from the hopper and accurately dispensing it into the tube.
Yeto Machine is a professional manufacturer and supplier of various machine. Please rest assured to buy the high-end autoamtic heat liminated soft plastic tube cream filler sealer machine with competitive price from us. We will offer you good after-sale service and fast delivery.
