Three-roller grinding mill machine for color pigment paint ink
The three-roller mill grinder is mainly used for various paints, inks, pigments, food and other paste-like materials, especially for grinding products with high dispersion viscosity and fine particle size. The roller surface has high hardness and wear resistance, and is equipped with a cooling system.
Features
Grinding and dispersing the material through the force of different speed of rollers.

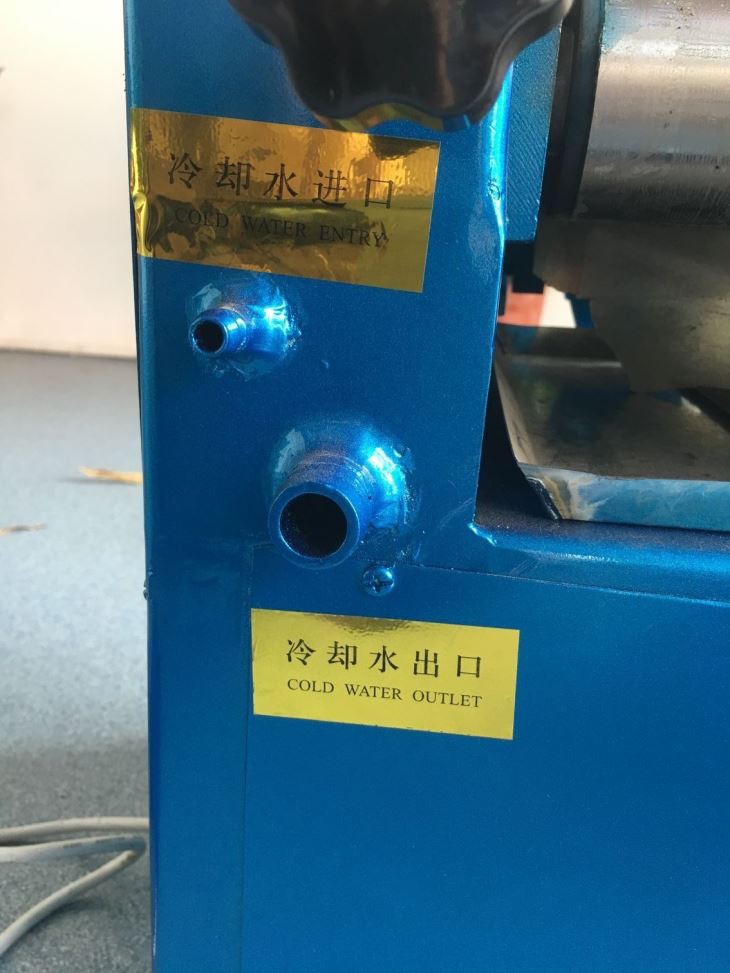

The cooling system reduce the temperature during working to protect the machine.
long time working life.
Technical parameter
| Model | S65 | S150 | S200 | S260 | S315 | S405 | |
Roller diameter/ mm | 65 | 150 | 200 | 260 | 315 | 405 | |
Roller length/mm | 125 | 300 | 500 | 695 | 760 | 810 | |
Roller speed RPM | slow | 32 | 25.3 | 20 | 19.1 | 19 | 15 |
| medium | 89 | 63.2 | 55 | 54.5 | 54 | 45 | |
| fast | 250 | 152 | 155 | 155 | 155 | 135 | |
| Motor power/kw | 0.75 | 2.2 | 4 | 7.5 | 11 | 15 | |
