Video introduction
Product description

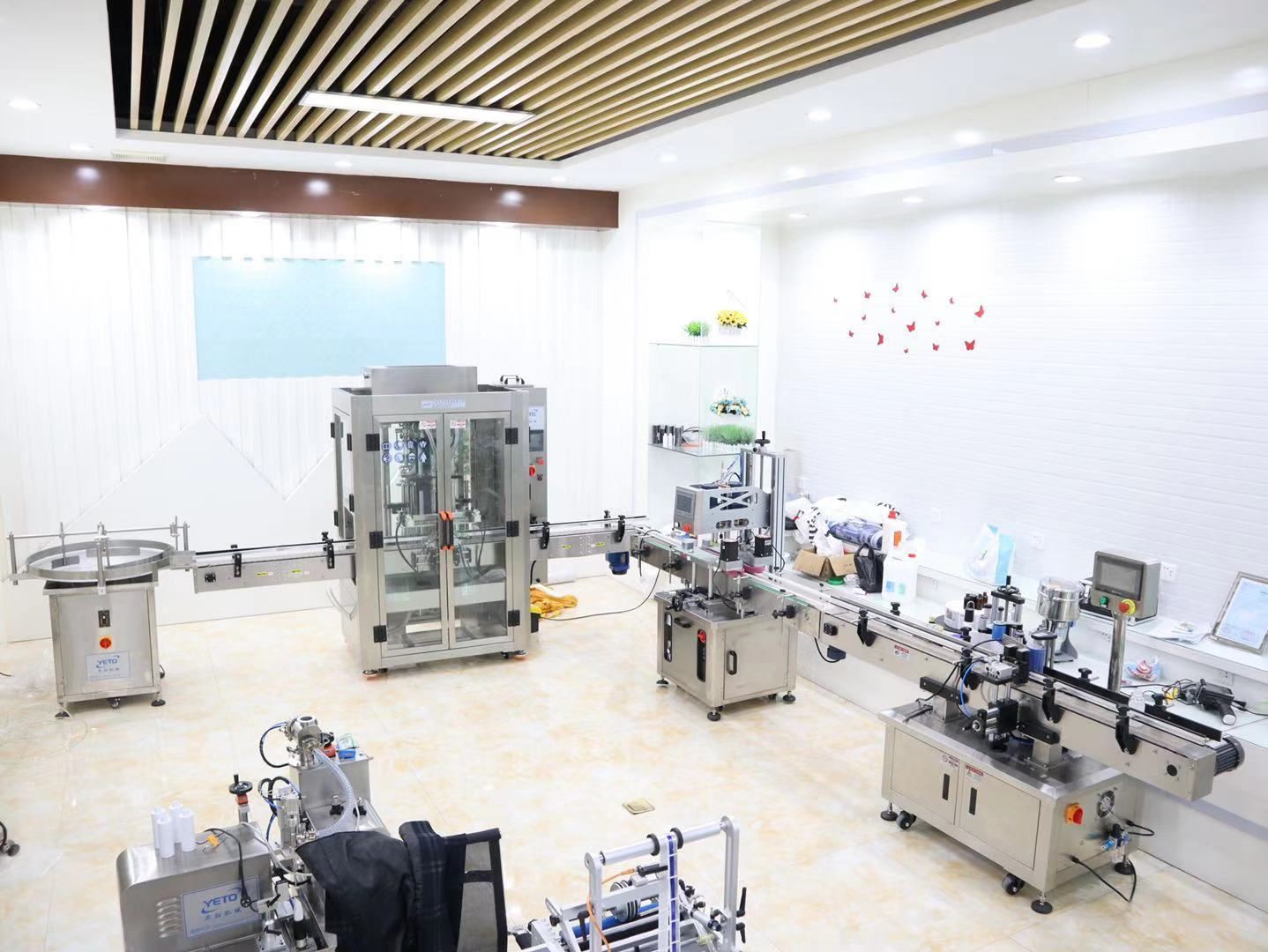

Our automatic filling capping and labeling machine can complete the container filling, within the cap loading, stamped, screw cap, discharge ,labeling and other series of operations. The equipment can be applied to water, lotion, cream and paste products.The production line also can be installed like this.
Product parameter
|
Filling nozzle |
2, 4, 6,8, 10, 12 (nozzles with different filling speed) |
|
Filling capacity |
10-120ml,25-300ml,40-500ml,80-1000ml,200-2500ml,400-5000ml |
|
Filling speed |
1200-1500BPH |
|
Filling accuracy |
±0.5-1% |
|
Material |
SUS 304 |
|
Program control |
PLC touch screen control system |
|
Working pressure |
0.6-0.8MPa |
|
Conveyor motor |
370W |
|
Power |
2.2kw/110v/60hz |
|
Hopper capacity |
60-200L |
|
Filling products |
paste, liquid,sauce, peanut butter, ketchup,beam paste, chili sauce, shrimp paste, apple sauce, salad dressing, caviar, hot sauce |
Details

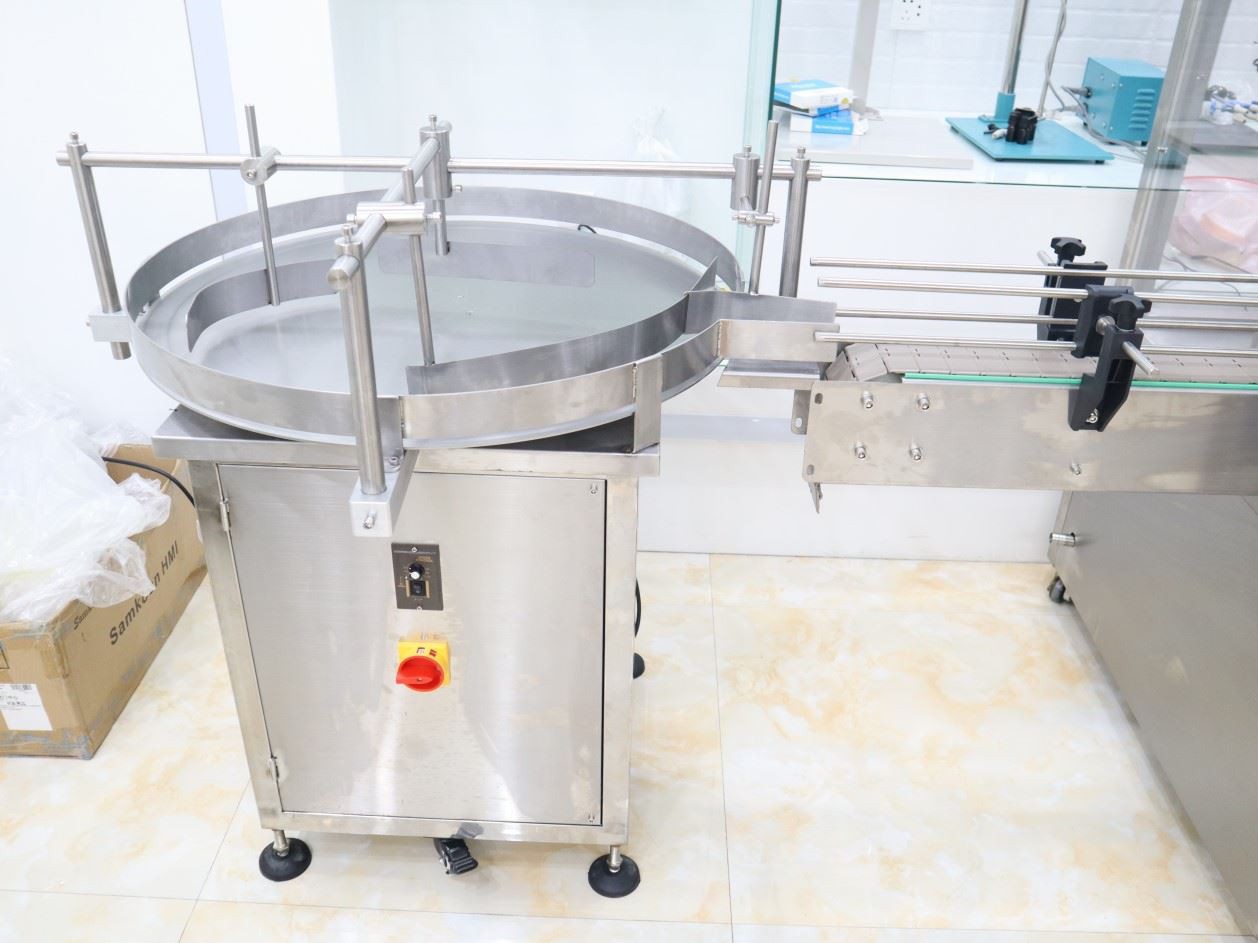

Bottle sorting distributor machine
-This machine is suitable for sorting small and medium-sized round bottles to increase production efficiency and reduce labor costs.
Automatic 6 nozzles filling machine(The nozzle quantity can be customized)
-It can be filled with shampoo, lotion, liquid soap, sauce, etc. 6 nozzles fast filling speed with anti-drip filling nozzle which reduces product waste. Servo motor has high filling accuracy, and the pneumatic hybrid mode saves energy and reduces emissions.The size of the conveyor belt can be adjusted to fit bottles of different sizes.

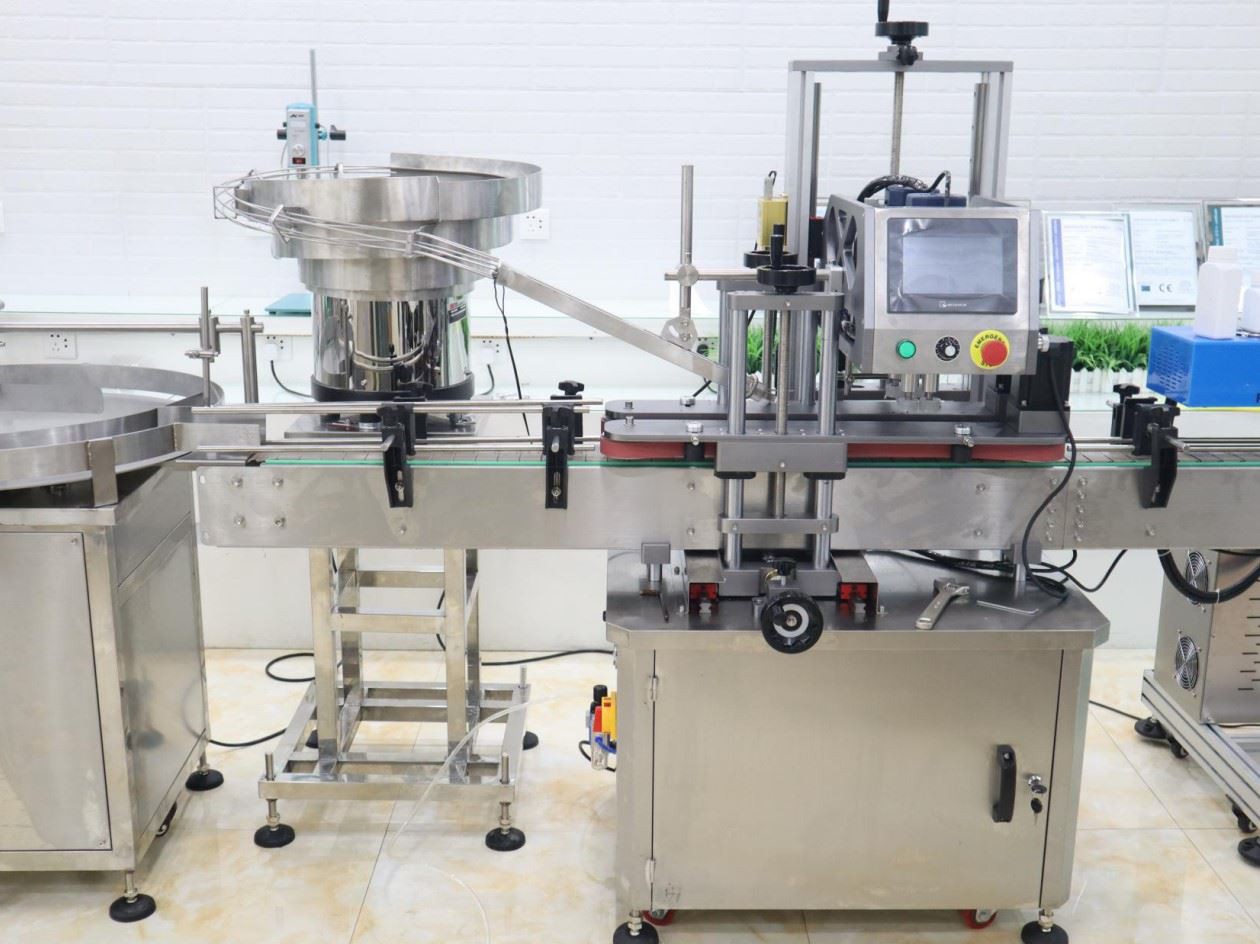

Cap loader and capping machine
-The automatic capping machine is suitable for a variety of different bottle caps, such as essential oil bottles, pump head bottles, dropper caps, screw caps, etc. The capping part can be equipped with a cap loader machine which increase the capping efficiency.
Round bottle Labeling machine
It is suitable for round bottles in different sizes. It can used for various materials like paper, paper with plastic film self-adhesive labels and transparent labels. The machine occupies a small area with fast labeling speed and low labeling accuracy.
Product features
1.The use of double-row air bottle, filling, capping, produced. (Double head)
2.The cleaning system to remove the static air, vacuum suction, to ensure that the container without dust, no impurities.
3.Filling: the use of servo motor combined with the valve filling, filling high precision; optional follow-type filling, high foam products in the filling process, will not produce bubbles; filling aqueous solution products.
4.Hopper equipped with a liquid level detection system, filling the Department of easy disassembly, transfer convenience. Switching parts usually takes only 20 minutes.
5.Through the adjustable mold to fix the container and handling containers, with the product, without changing the mold (except for special containers) to disc operation, reduce the area.
6.The use of hand-type screw cap, apply to any spiral cover, torque, torque adjustable. Capping parts with soft silicone material, in the course of work will not scratch the lid itself.
7.Anyone can be skilled in a short period of time operation.
8.The installation of casters can be easily moved.
9.The whole machine using sanitary stainless steel manufacturing, cleaning, health.
