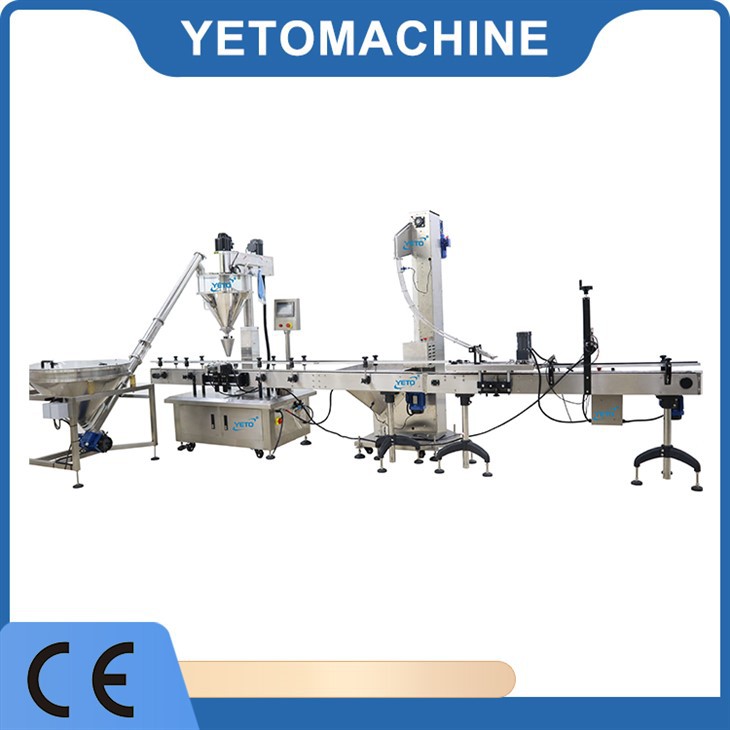

automatic powder filling cap pressing machines
An automatic powder filling capping line is a production line that is designed to automatically fill and cap containers with powdered products.
The line typically consists of several machines that work together to accomplish this task, including a powder filling machine, a container indexing machine, a cap placing machine, and a capping machine.
The powder filling machine measures and dispenses a predetermined amount of powder into each container as it passes by on the indexing machine. Once the container is filled with powder, the cap placing machine places a cap onto the container, and the capping machine secures the cap in place.
This process continues until all containers on the line have been filled and capped.
The line is often used in the food, pharmaceutical, and chemical industries to increase production efficiency and reduce labor costs.

Powder transfer machine and filling machine
Parameters of powder filling machine:
Weight system | Weighing feedback tracking spiral filling type |
Weight range | 1-1000g |
Accuracy | ≤±1%(based on powder) |
speed | Based on workers (10-30b/min) |
voltage | 380V 50/60Hz |
Power | 2 KW |
Weight | 130kg |
Size of machine | 930×980×1900mm |
Volume of hopper | 50L |
Packing size | 960*102*2080mm |
Parameters of powder transfer machine:
Volume of hopper | 150L |
Diameter of pipe | 102mm |
Voltage | 380V 50/60Hz |
Power | 1.1KW |
The top height to ground | 1650mm |
Packing size | 2500*1050*1830mm |
