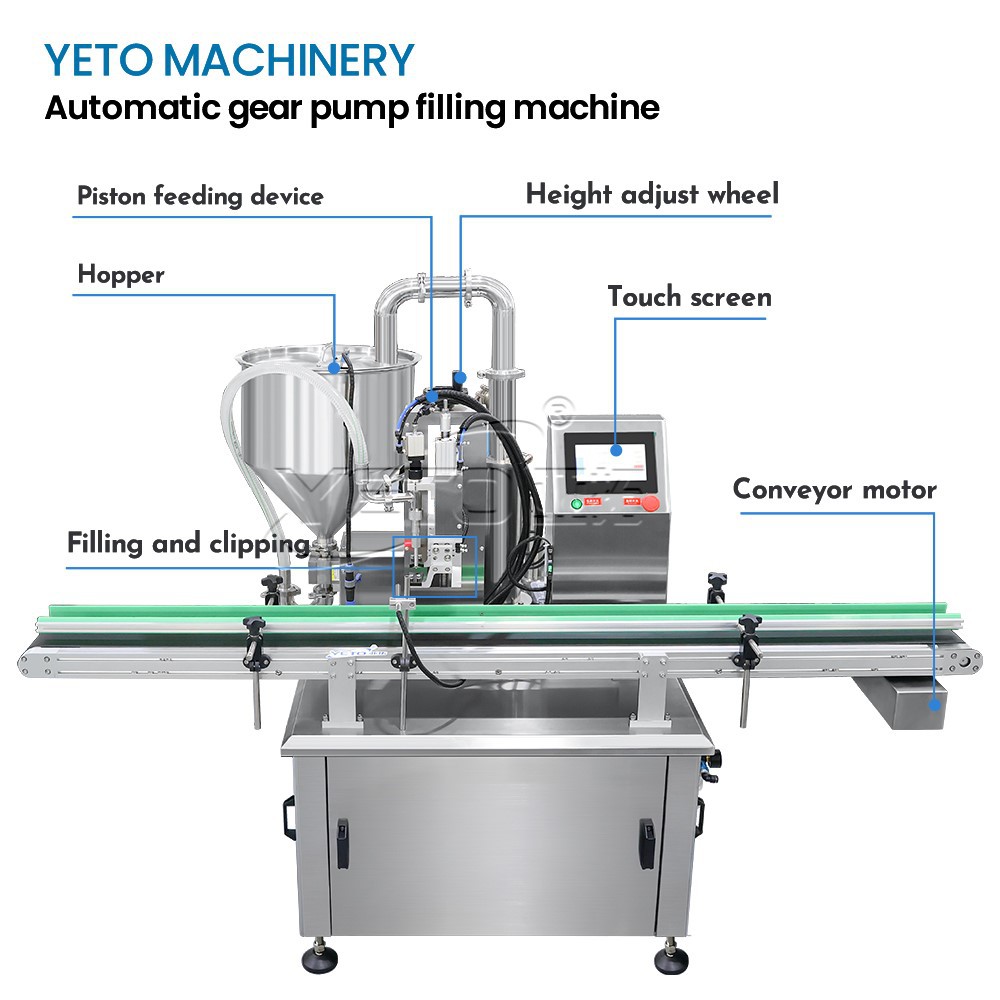

Precision Gear Pump System
Uses magnetically driven 316L stainless steel pump head for leak-proof operation, eliminating shaft connection to prevent motor overload and ensuring zero contamination.
Independent heating on hopper, pump, and nozzle (optional) to maintain optimal fluid viscosity.
Intelligent Control & Performance
PLC-controlled system with touchscreen interface for setting fill volume (1g to 5000g), temperature, and timing (accuracy: ±1%).
Fill speed: 10–60 bottles/minute; supports auto-intermittent, manual, or foot-switch modes.
Adaptability & Safety
Compatible with viscous oils, edible oils, lubricants, and heated mediums (e.g., waxes, cosmetics), excluding corrosive or particle-laden fluids.
Safety protocols: Emergency stop, overload protection, and mandatory power disconnection during maintenance.
Technical Specifications
| Parameter | Value |
|---|---|
| Power Supply | 220V/110V, 50/60Hz, 0.8kw |
| Viscosity Range | ≤10°E (at ≤60°C) |
| Material Contact | 316L stainless steel |
| Operation Modes | Auto/semi automatic |
| Noise Level | Below national standards |
