Product Video
Product Specifications
|
Capacity |
50-100L |
Material connect material |
SUS316/304 |
|
Power |
2.2kw 380v 50Hz |
Material of frame |
Sus/Iron |
|
Motor |
Beide Siemens motor |
Inverter |
Delta |
|
Air pressure |
4-8 kg/cm2 |
Homogenizer speed |
0-2880r/min |
|
The height of homogenizer can be lifted |
1000-1200mm |
Size |
1.0*1.0*2.1m |
Product Details

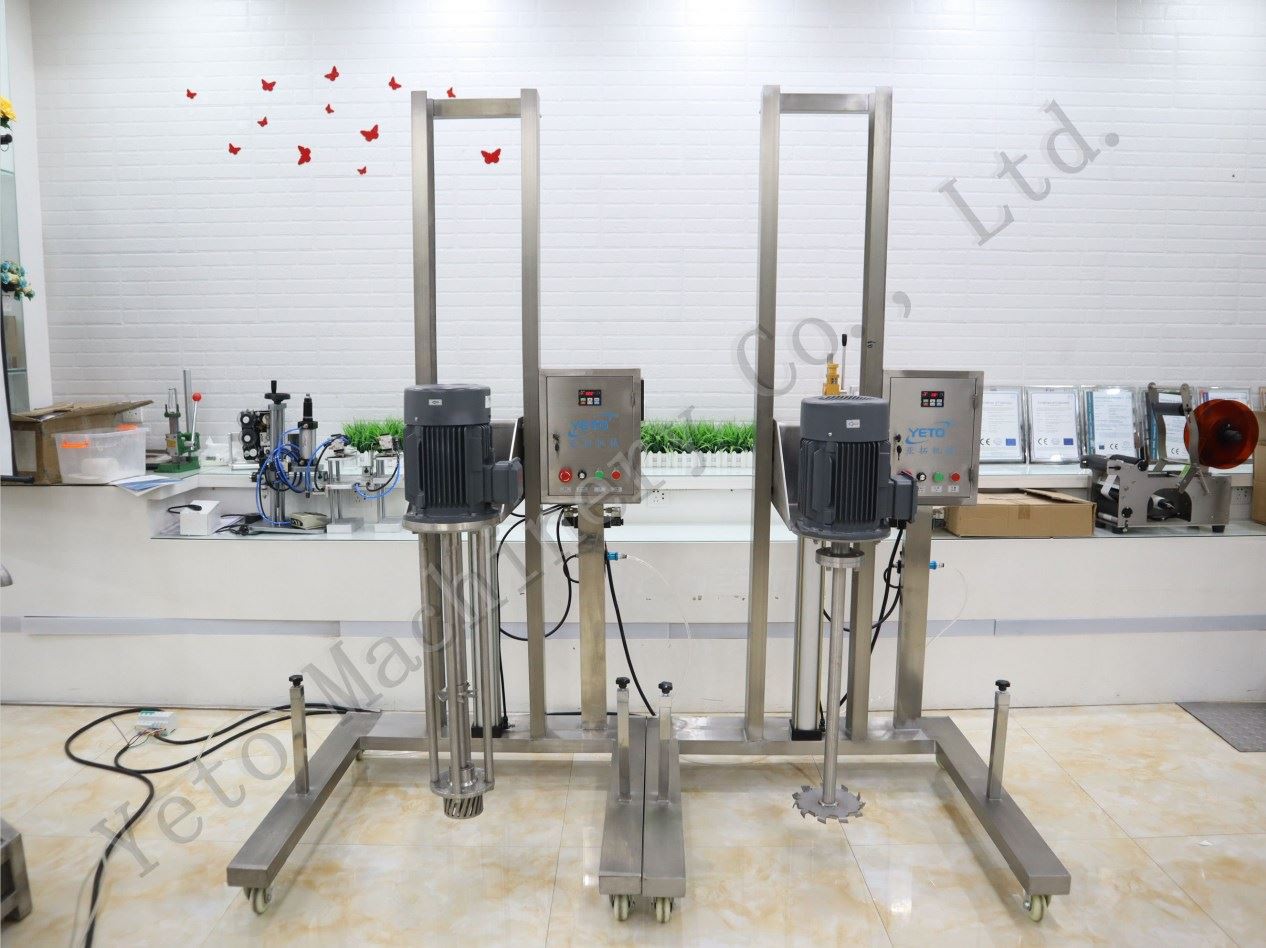

High-power Material Mixer
This 2.2kw Pneumatic Lifted Mixer does not produce electrical sparks, ensuring safety and efficiency. It can be used in industries such as pharmaceuticals, food, and chemicals, where it ensures uniform and high-quality mixing of materials without leakage or flavor transfer. It guarantees clean and hygienic materials.
Structural composition
There are several key components in particular：
Control panel
In the middle of the pillar, there is an electric motor and control panel installed. The control panel contains control elements such as power switch, start button, stop button, and speed control knob, making it convenient for operators to adjust the stirring speed according to their needs.
Air-powered
There is a pneumatic lifting device at the bottom of the 2.2kw Pneumatic Lifted Mixer, used to control the lifting of the stirring shaft. This device is driven by compressed air, ensuring smooth lifting of the stirring shaft with simple operation and reliable safety.
Agitator shaft
The stirring shaft is vertically mounted inside the pillar, with the lower end connected to the stirring head. The stirring head may have a multi-layer paddle blade structure, designed for efficient stirring of materials. Both the stirring shaft and stirring head are made of stainless steel, with a smooth surface that is easy to clean and maintain.
Base
The base is a rectangular structure with adjustable bolts on the surface, used to balance and adjust the height of the equipment, ensuring stability in different working environments. It also has four wheels, making it easy to move the equipment around.
Product Advantages
Strong stability
The 2.2kw Pneumatic Lifted Mixer is built with two vertical stainless steel columns and a top beam, forming a sturdy frame structure to ensure stability during operation.
Lifting function
Utilizing double cylinders or multiple cylinders in parallel, the installation position and angle of the cylinders are carefully designed to ensure balance and stability during the lifting process.
Versatility
Can be used for liquids of different viscosities, such as high-viscosity liquids like paint, glue, paste, as well as low-viscosity liquids like diluents, cleaning fluids, and certain chemical reagents.
High-speed rotation
Designed with a special shearing impeller for rapid dispersion of materials at different speeds, quickly achieving dissolution for high-quality and efficient results.
Instructions For Use
Product Usage Process
Material Preparation
Install the mixing head, connect the power supply, prepare the materials to be mixed, and check the equipment for safety.
Adjust Parameters
Adjust the lifting mixing shaft, and adjust the mixing speed according to the viscosity and scale of the materials.
Cleaning
Clean the control panel, mixing head, and mixing shaft.After using the equipment, clean it promptly to keep it clean, hygienic, and durable.
Maintenance
Apply lubricating oil to the moving parts of the 2.2kw Pneumatic Lifted Mixer to reduce wear and tear. Store in a dry place.
Packaging and Shipping
Product transportation
Packaging
The 2.2kw Pneumatic Lifted Mixer is carefully packaged in a sturdy wooden crate with foam cushioning material to ensure it is not damaged during transportation.
Additional secure straps are used to hold the mixer in place inside the crate. Labels such as "fragile" and "handle with care" are placed on the outer packaging to remind transportation personnel to handle the product with caution. Our top priority is to ensure that the product reaches its destination safely and intact.
Shipping
Shipping time and method depend on the logistics mode and destination. Placing an order early allows for earlier shipment arrangements. Feel free to purchase at any time.
The shipping country covers major sales regions including China, Africa, Europe, South America, Southeast Asia, North America, Northeast Asia, the Middle East, and Latin America. If you are interested in the 2.2kw Pneumatic Lifted Mixer, please feel free to contact us for the most accurate information.
