Video introduction
Product description
About shampoo mixing tank:
During the production of liquid washing products ,the self-suction type AES dissolver can alleviate worker’s labor intensity of feeding and shorten dissolving time.
HIgh speed mixing is often required when incorporating solids into liquid especially when the powders are difficult to wet out,or when large maount of solids are involved .Mixing under high shear and turbulent flow conditions is also ideal for particals size reduction,emulsificationg and homogenization.
Top mixing frame with Teflon scraper contains a stable oar ,the stable oar can Prevent whirlpool formation.
The speed of Bottom homogenizer can be 0-2880rpm/min.high speed makes the products cut in small pieces and the raw material can be emulsifing totally
Product parameter
Specifications | Mixing motor(kw) | Homogenizing motor(kw) |
100L | 0.55 | 2.2 |
200L | 1.5 | 3 |
300L | 2.2 | 4 |
500L | 2.2 | 5.5 |
1000L | 3 | 7.5 |
2000L | 5.5 | 11 |
Please do not hesitate to contact us to learn more details of this machine. We will provide you professional service with high quality products.
Details

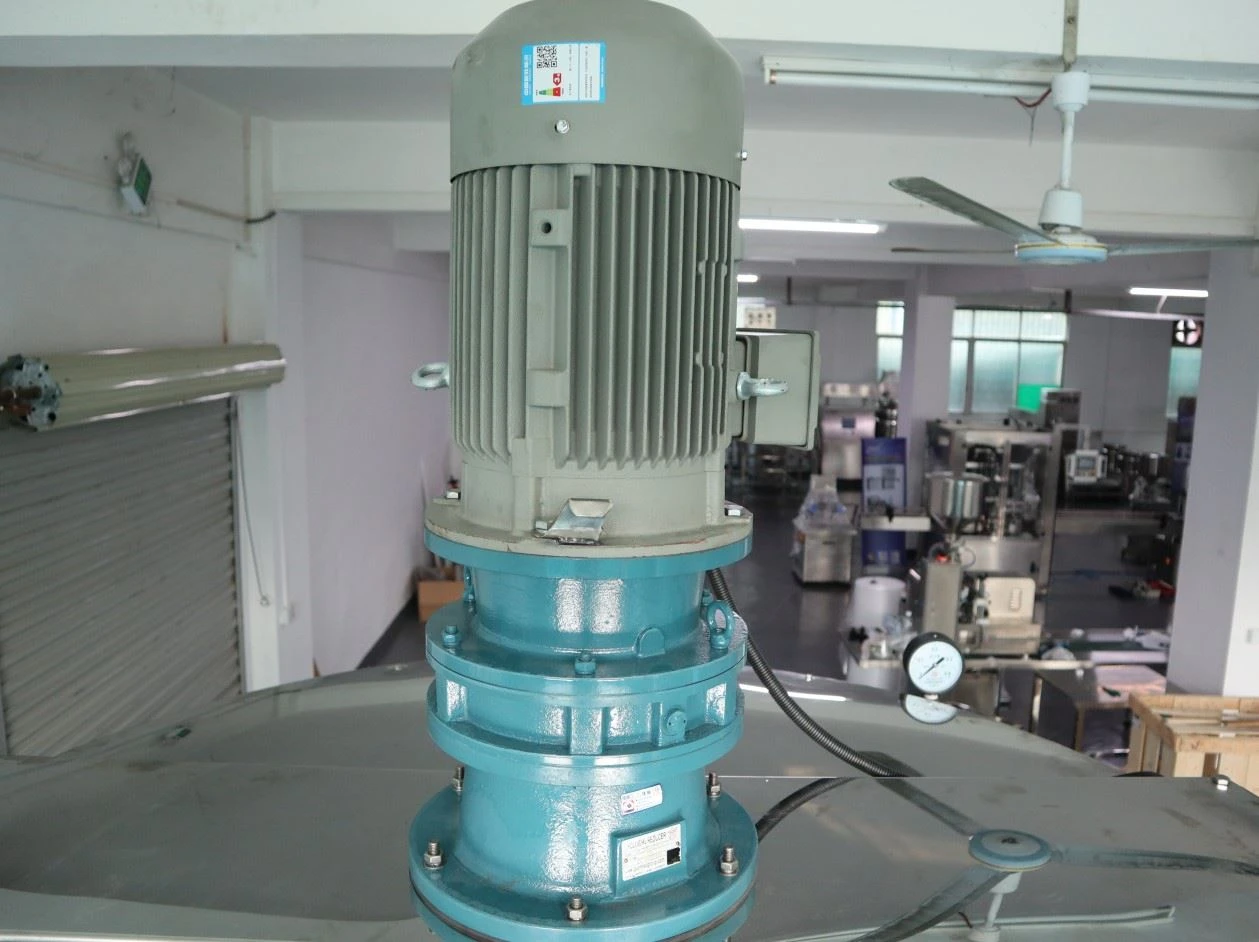

The top mixing motor is high quality. It controls the mixing paddle to mix the product evenly. The mixing speed can be adjusted from 0 to 63rpm.

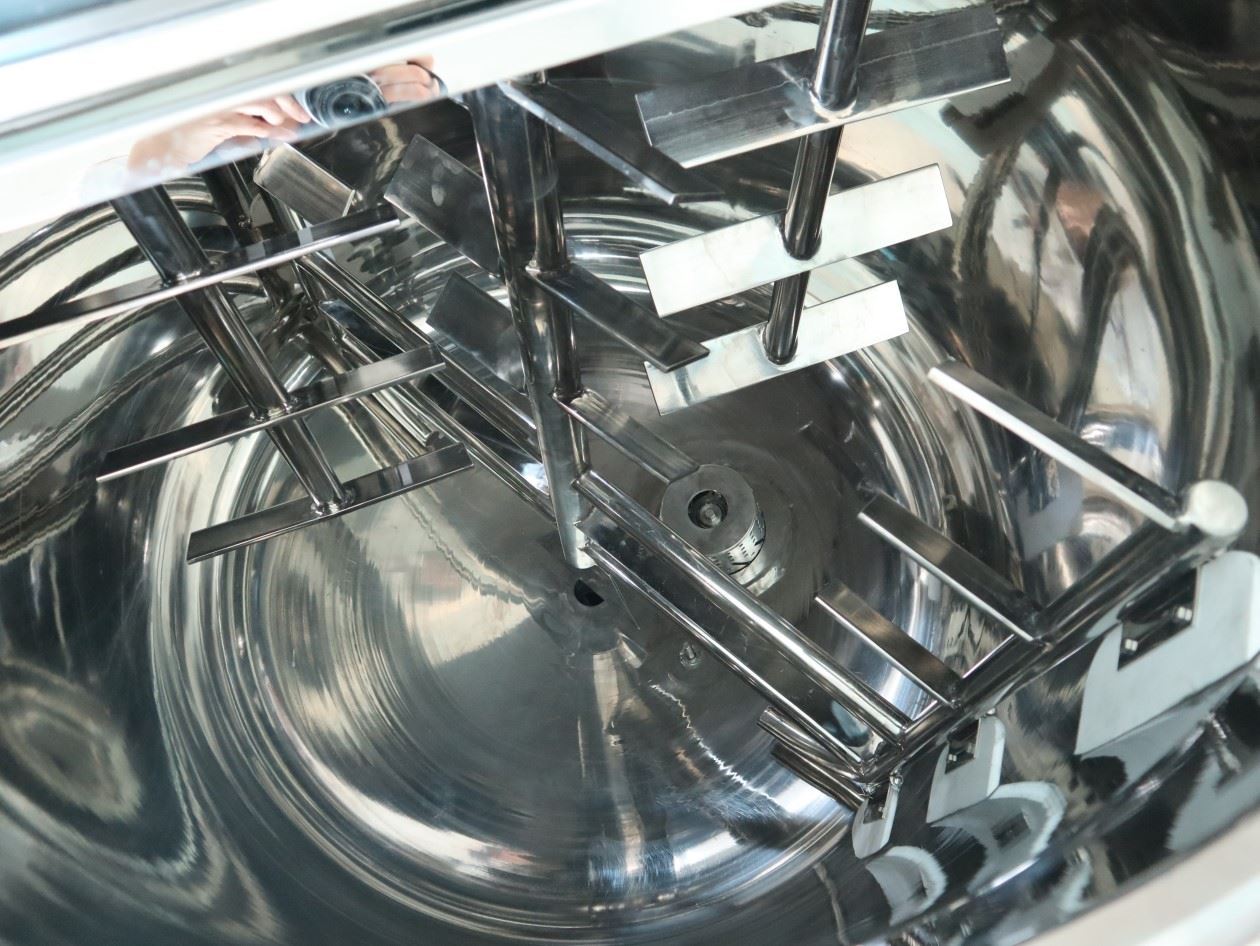

The mixing paddles is made with frame shape. It can mix the product completely. The paddle shape can be customized according to the requirement of the customers based on different products. With polish inside of the tank, all of the paddle and tank inside are made from 316L, which meets the GPM standard.
The bottom homogenizing motor is high quality. The homogenizer has the function of high shearing. The side hole connect with outer circulation pipe, control by ball valve. And the homogenizer on the bottom of the pot can high shear the material into small molecule, which makes the product to be more delicate.
The control panel is make with button control, which is easy to operate. The staffs with normal training can control the machine. It can also be customized into touch screen control panel according to your need.
Product features
1.The blending tank adopts full stainless steel material, especially in contact with the material layer, adopt 316L stainless steel to meet the requirements of GMP pharmaceutical level.
2.The mixing blade is sturdy box type impeller design. The stirring intensity is big, durable, impeller outer ring with scraping plate edge.
3.The mixing motor is equipped with frequency control, so that you can adjust the stirring speed according to the demand of the production process.
4.The stirring pot flip design facilitate feeding and cleaning the pot body inside.
5.The material discharge is on the bottom of the pot with the valve control. With the help of gravity and the good fluidity of the product, the product can discharge automatically, which makes it simple and efficient. The stir can be customized according to customer's product features.
6.The equipment is composed of electrical control cabinet and the main pot.
Application
This machine is applicable in cosmetic, food, chemical, daily chemical, pharmaceutical, agricultural industries such as shampoo, hand sanitizer, disinfectant, beverage, fruit juice, mayonnaise, body cream, pesticide, fertilizer, chemical liquid, etc. products.
Pls do not hesitate to send us inquiry if you are interested in our machines or if you have any doubt on our machines and other issue.
