Semi automatic pneumatic piston double heads cosmetic food chemcial filling machine
The 1,2 Heads Pneumatic Piston Cream Shampoo Lotion Bottle Filling Machine utilizes imported pneumatic components to control the reciprocating movement of the piston. The pneumatic system is stable, reliable, and easy to maintain, ensuring precise filling of materials with stable performance and long service life.
The hoppers and cylinders can be made of SUS316 material, which is durable, corrosion-resistant, and long-lasting, ensuring stability under high-speed and long-term operation. Additionally, it can be connected with capping machines, bottle labeling machines, and packaging machines to form a complete production line.
Technical parameters
| 1,Filling volume | 5-50ml | 30-300ml | 50-500ml | 100-1000ml | ||
| 2,Filling accuracy: 0.5% | 3,Working pressure: 4-8kgf/cm2 | 4,Filling nozzle: 2 nozzles | ||||
| 5,Cylinder Brand: AirTAC | 6,Drive: Pneumatic Piston | 7,Machine overall size: 65*43*155cm | ||||
| 8,Machine weight : 80KG | ||||||
More details
Two filling nozzles
The flexible adjustment of each filling nozzle according to production needs is possible. For example, if only one product needs to be filled, only one filling nozzle can be started, saving resources.
Pneumatic System

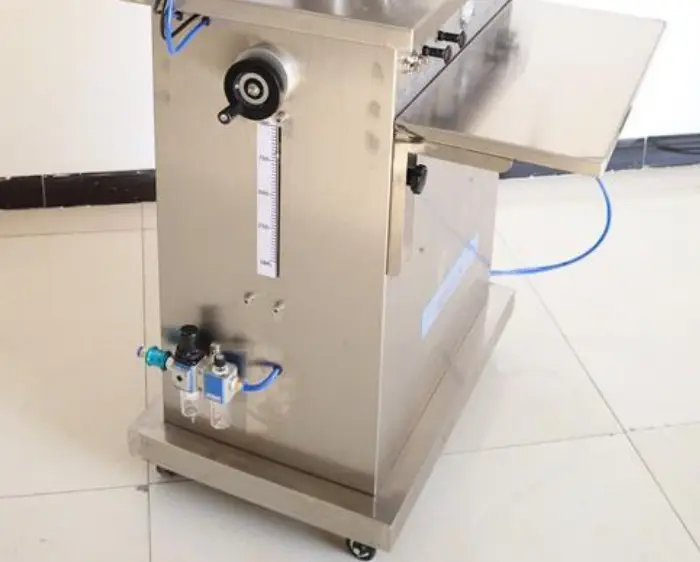

The blue air tube of the 2 Heads Pneumatic Piston Cream Shampoo Lotion Bottle Filling Machine is connected to the filling head, using compressed air to drive the piston for filling. The machine is equipped with wheels at the bottom for easy mobility.
Manual Operation
The design of the foot pedal makes operation more convenient. Operators can control the start and stop of the filling process through the foot pedal, without the need to manually operate the control panel. This can improve work efficiency and reduce operational errors.
Versatile
This design is especially suitable for situations that require frequent product switching or precise control of filling volume, such as the production of multiple varieties in small batches on cosmetics production lines. Such as filling for cream cosmetics:
shampoo
lotion
hand cream
liquid soap
lundry detergent
Composition structure
The following points：
Pneumatic
Using compressed air as a power source, the piston moves in the cylinder to achieve the quantitative filling of liquid or paste substances.
Dual-head
The 2 Heads Pneumatic Piston Cream Shampoo Lotion Bottle Filling Machine has two filling heads, allowing simultaneous filling of two containers to improve production efficiency.
Piston
The piston controls the in and out flow of liquid or paste substances through its reciprocating motion in the cylinder, ensuring the accuracy and consistency of the filling amount.
